(88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX350D LC (88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

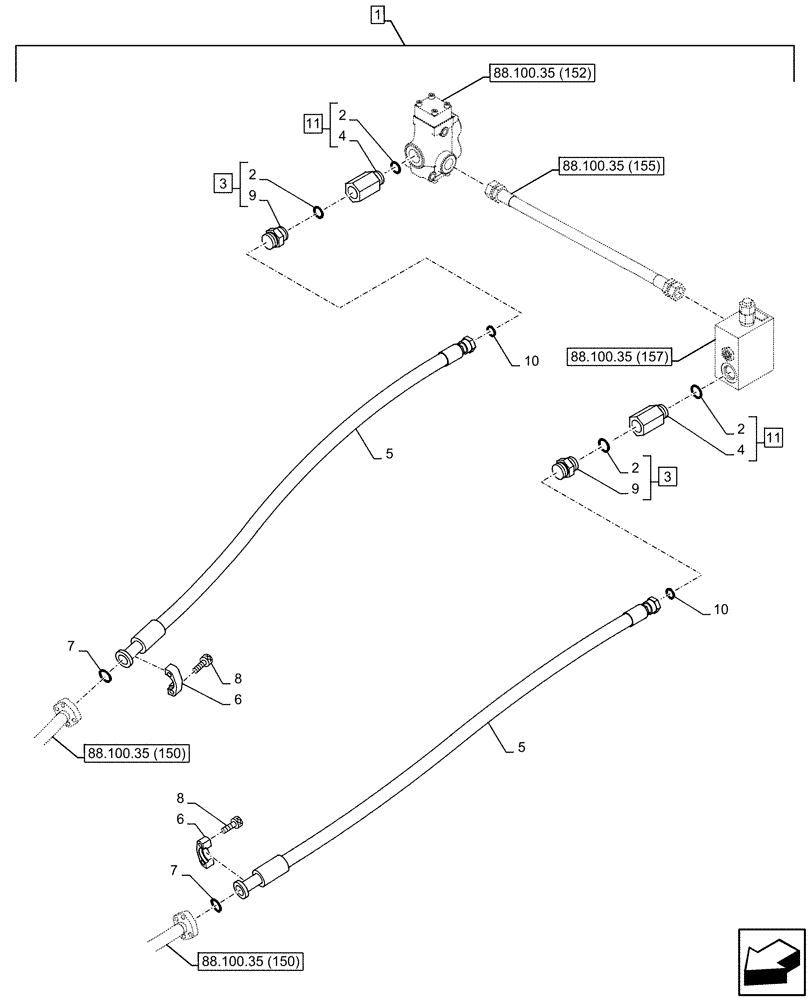

Схема запчастей Case CX350D LC - (88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
6
1
11
88.100.35 (150)
4
8
88.100.35 (155)
88.100.35 (150)
10
2
9
3
4
88.100.35 (152)
88.100.35 (157)
7
3
8
7
2
2
2
5
9
10
11
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP079-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154523A1

O-RING

4шт.

3

KHJ1349

ADAPTER

ASSY, Incl 2 (Qty 2), 9

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

2шт.

5

KSJ19110

HOSE

25mm ID x 1670mm

2шт.

6

150124A1

FLANGE

4шт.

7

164450A1

O-RING

2шт.

8

108R014Y055R

BOLT

8шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

11

KHJ25900

SOCKET

ASSY, Incl 2 (Qty 2), 4

2шт.
