(88.100.35[109]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE

Запчасти Case CX350D LC (88.100.35[109]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE (88) - ACCESSORIES

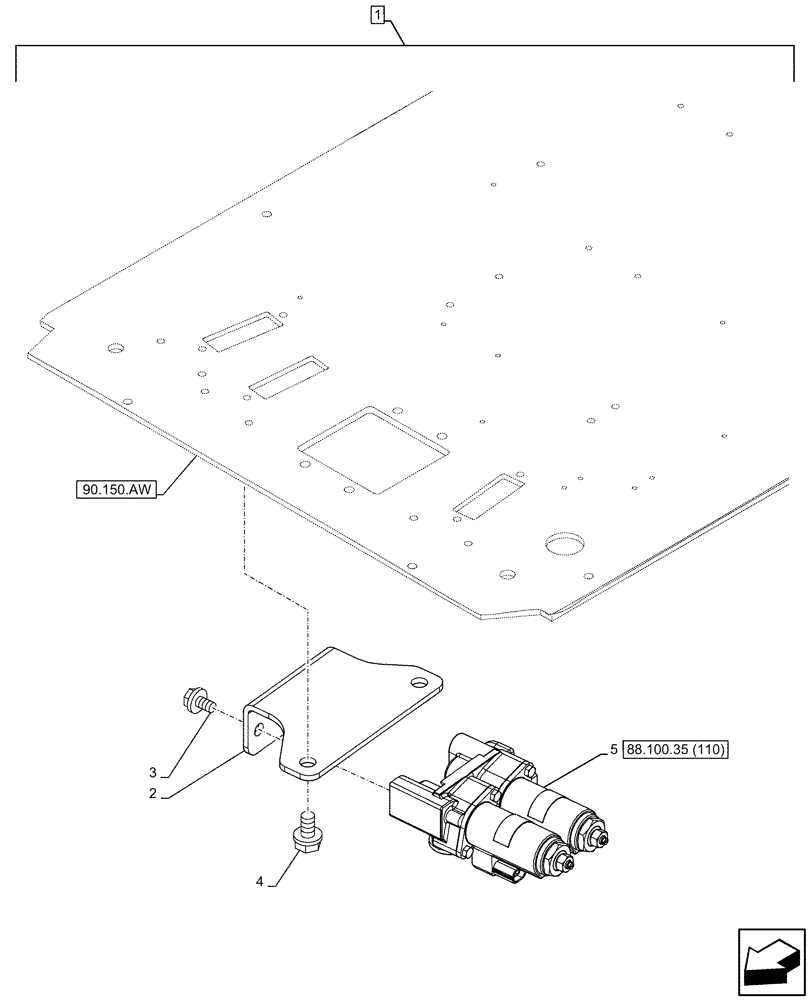

Схема запчастей Case CX350D LC - (88.100.35[109]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE (88) - ACCESSORIES
3
88.100.35 (110)
2
1
4
5
90.150.aw
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP087-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28770

BRACKET

1шт.

3

166345A1

BOLT

M8 x 16mm

2шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.

5

MFJ71500

VALVE SECTION

ASSY

1шт.
