(88.100.35[102]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, JOYSTICK, LH, RH

Запчасти Case CX350D LC (88.100.35[102]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, JOYSTICK, LH, RH (88) - ACCESSORIES

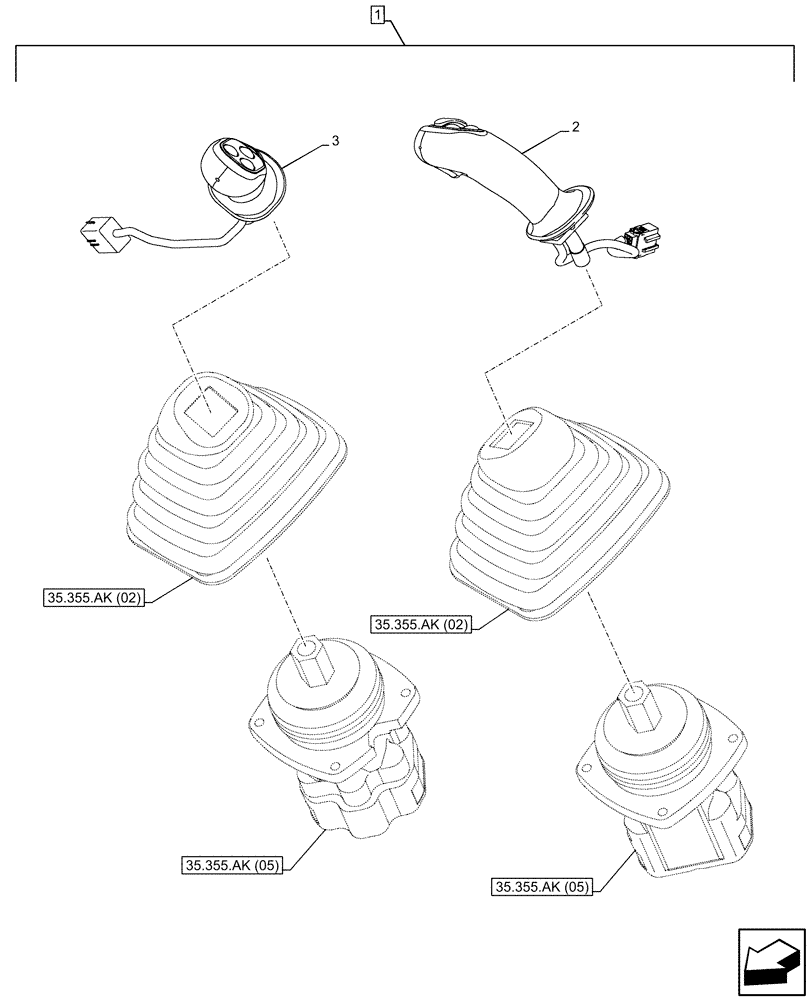

Схема запчастей Case CX350D LC - (88.100.35[102]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, JOYSTICK, LH, RH (88) - ACCESSORIES
35.355.ak (02)
35.355.ak (05)
2
1
35.355.ak (05)
3
35.355.ak (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP087-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28540

JOYSTICK

Switch Proportional Left

1шт.

3

KHJ29090

KNOB

Switch Proportional Right

1шт.

Выбрано товаров: 4
