(88.100.35[098]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE

Запчасти Case CX350D LC (88.100.35[098]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

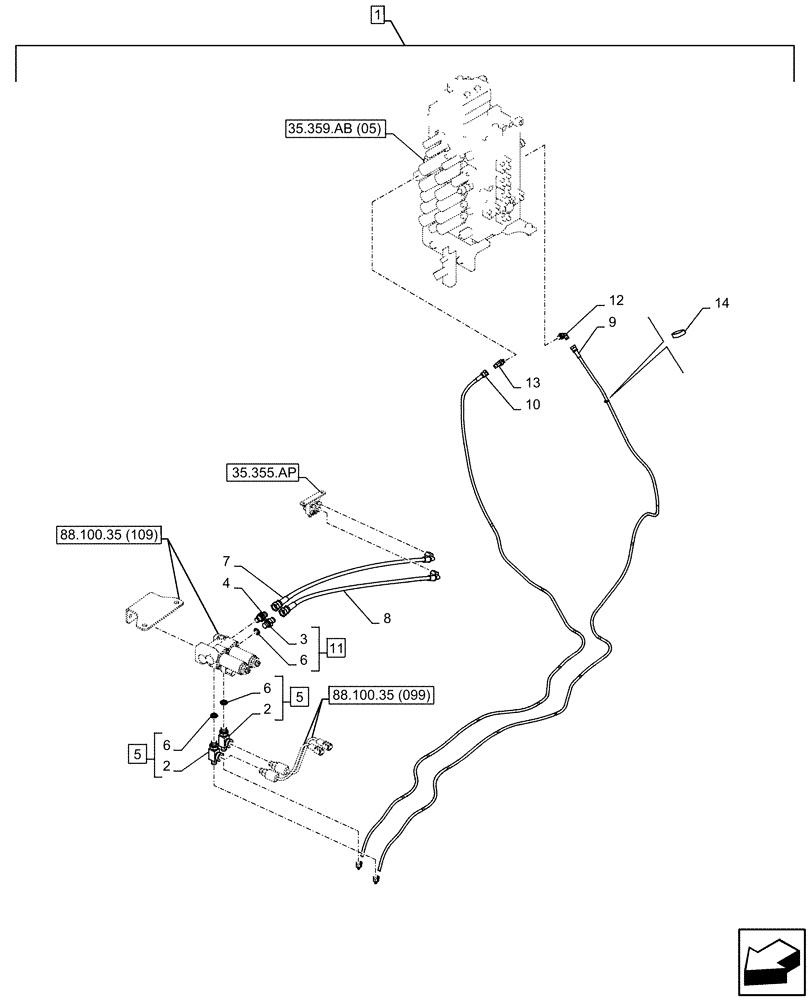

Схема запчастей Case CX350D LC - (88.100.35[098]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
8
88.100.35 (099)
13
4
11
3
35.359.ab (05)
1
35.355.ap
7
14
6
10
6
5
6
12
9
2
88.100.35 (109)
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP087-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 5

2шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

4

161841A1

HYD CONNECTOR

1шт.

5

167666A1

FITTING

ASSY, Incl 2, 6 (Qty 2)

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

7

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

8

KHJ2088

HOSE

1шт.

9

KHJ11480

HYDRAULIC HOSE,6.35 mm ID x 3950.00 mm

1шт.

10

KHJ15160

HYDRAULIC HOSE

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 3, 6 (Qty 1)

1шт.

12

KHJ28580

ELBOW

1шт.

13

KHJ28630

ELBOW

1шт.

14

150496A1

MOUNTING CLIP

250mm

2шт.
