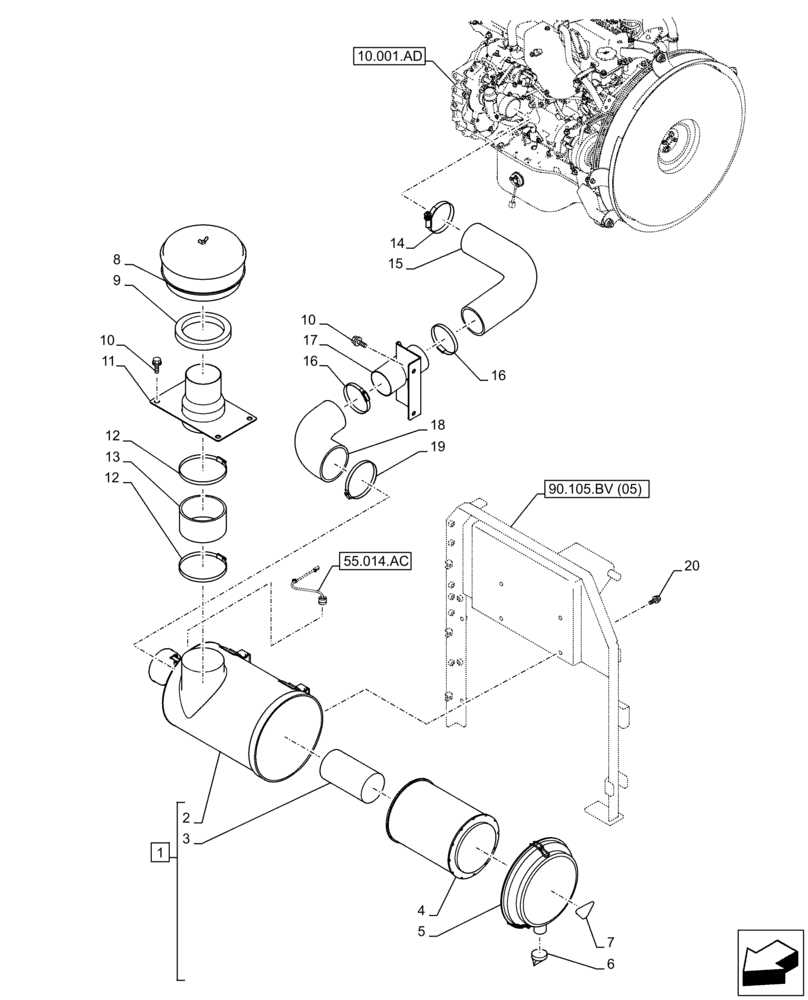

Запчасти Case CX350D LC (10.202.AB) - AIR CLEANER (10) - ENGINE

1

KSH14440

CLEANER

ASSY, Incl 2 - 7, Serial Range: -C0340

1шт.

See also Figure 55.014.AC

1шт.

1

KSH14441

AIR CLEANER

ASSY, Incl 2 - 7, Start Serial: D0340

1шт.

See also Figure 55.014.AC

1шт.

2

NSS

NOT SOLD SEPARAT

Cleaner, Incl in 1

1шт.

3

KSH0932

AIR FILTER

Air Cleaner, Secondary

1шт.

4

KSH0933

AIR FILTER

Air Cleaner, Primary

1шт.

5

KSH0934

COVER

1шт.

6

KBH0924

VALVE

1шт.

7

KTH0581

DECAL

1шт.

8

KHH13120

FILTER ASSY

1шт.

9

KSH12930

SEAL

1шт.

10

166352A1

BOLT

M12 x 30mm

6шт.

11

KSH12920

PIPE

1шт.

12

KHJ33140

HOSE CLAMP

2шт.

13

KTH12680

LARGE HOSE

1шт.

14

KHH13540

CLAMP

1шт.

15

KSH14280

HOSE

1шт.

16

KHJ33120

HOSE CLAMP

2шт.

17

KSH14470

BRACKET

1шт.

18

KSH14270

HOSE

1шт.

19

KHJ33130

HOSE CLAMP

1шт.

20

166347A1

BOLT,Sems, M10 x 30mm

4шт.
