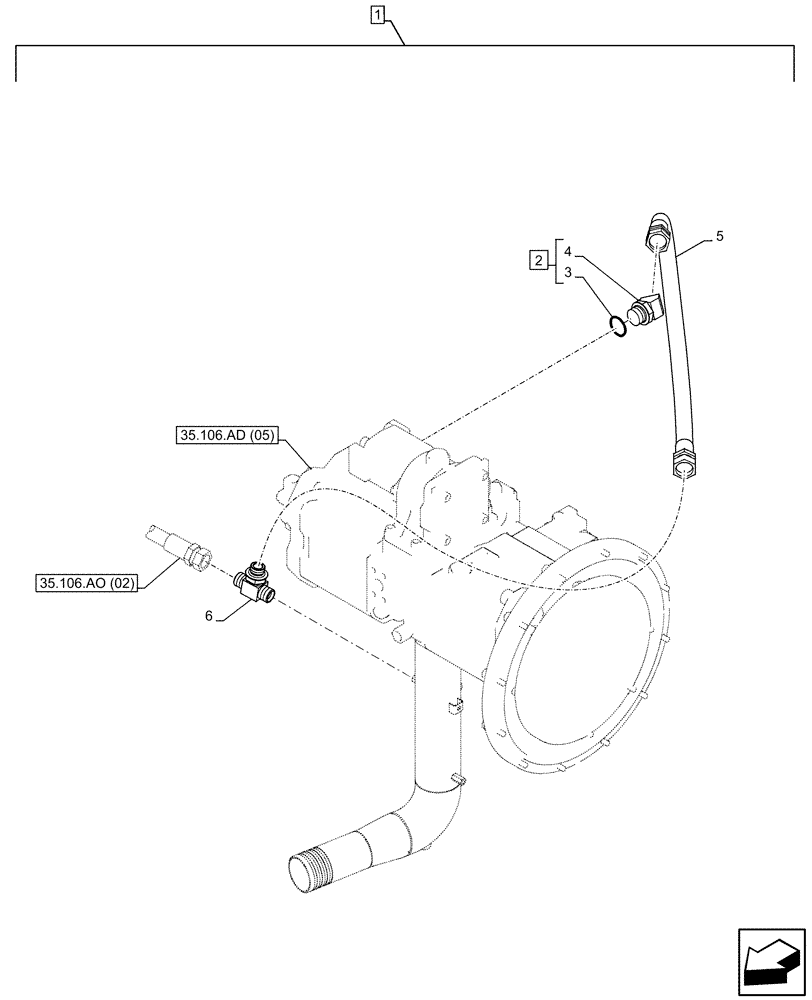

Запчасти Case CX350D LC (88.100.35[079]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, VARIABLE DELIVERY HYDRAULIC PUMP, LINE (88) - ACCESSORIES

1

KG1SP086-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

157587A1

ELBOW

ASSY, Incl 3, 4

1шт.

3

154523A1

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

KSJ2909

HYDRAULIC HOSE,25.40 mm ID x 780.00 mm

1шт.

6

ABV0829

TEE

1шт.
