(88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX350D LC (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

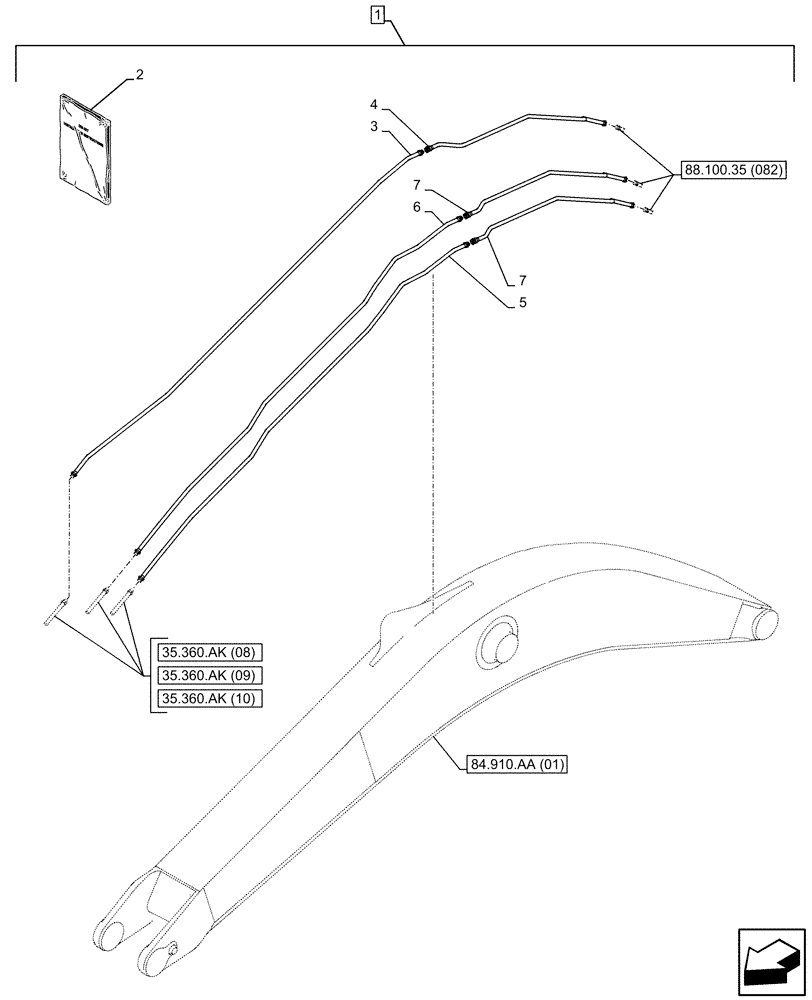

Схема запчастей Case CX350D LC - (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
4
7
35.360.ak (08)
84.910.aa (01)
7
5
2
35.360.ak (10)
3
6
1
35.360.ak (09)
88.100.35 (082)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP086-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47774784

INSTRUCTION

1шт.

2

47774786

INSTRUCTION

1шт.

3

KSV24620

PIPE

1шт.

4

KSV24630

PIPE

1шт.

5

KSV24650

PIPE

1шт.

6

KSV24600

PIPE

1шт.

7

KSV24610

PIPE

2шт.

Выбрано товаров: 9
