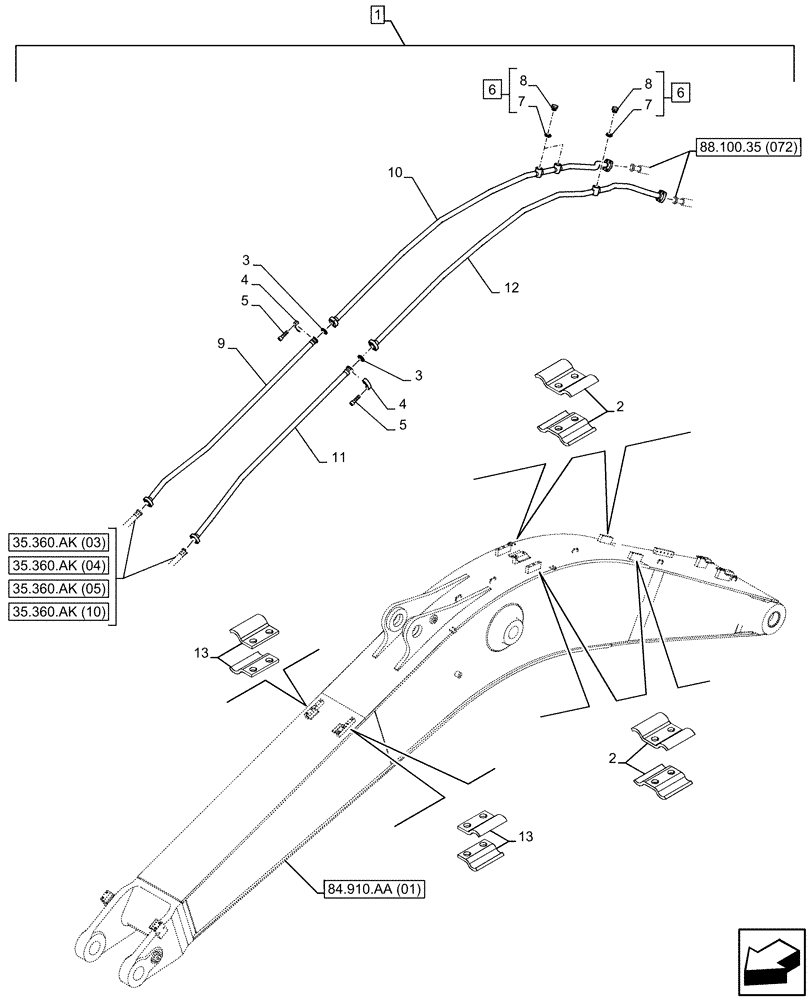

Запчасти Case CX350D LC (88.100.35[073]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1SP083-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV11200

PIPE CLAMP

8шт.

3

153626A1

O-RING

2шт.

4

150124A1

FLANGE

4шт.

5

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

6

152924A1

PLUG

ASSY, Incl 7, 8

3шт.

7

150542A1

O-RING

3шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

9

KSV24560

PIPE

Down, RH

1шт.

10

KSV24571

PIPE

Upper, RH

1шт.

11

KSV24530

PIPE

Down, LH

1шт.

12

KSV24541

PIPE

Upper, LH

1шт.

13

KHV11060

COLLAR CLAMP

4шт.
