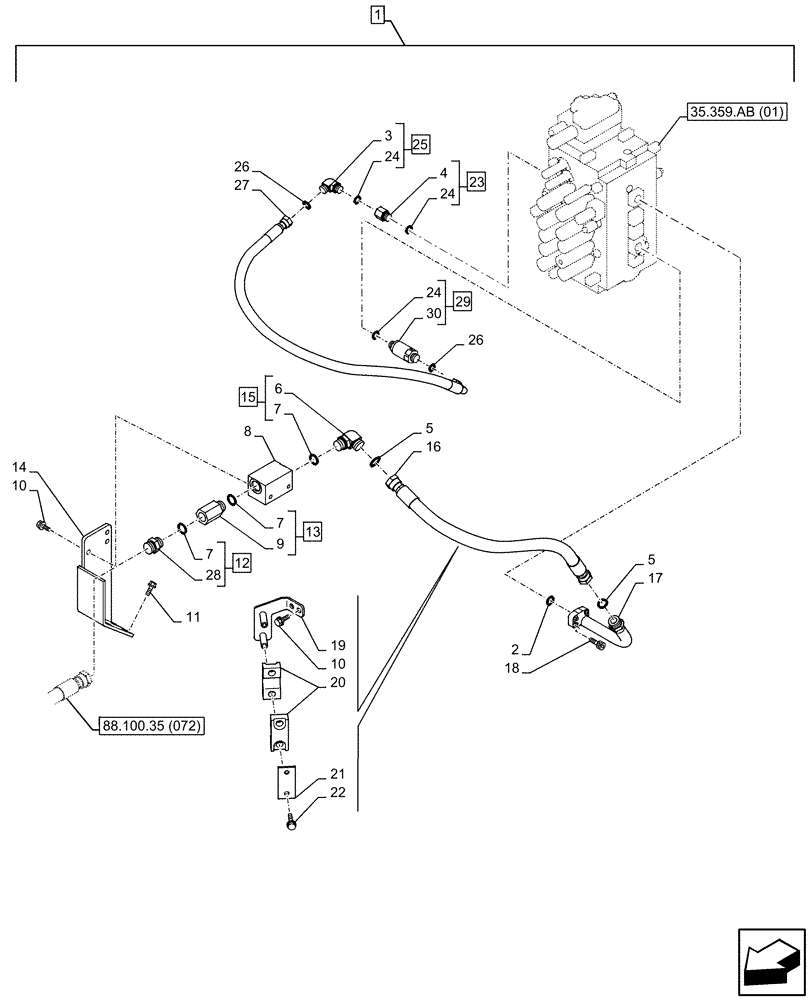

Запчасти Case CX350D LC (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1SP083-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 30

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155211A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 25

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 23

1шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 15

1шт.

7

154523A1

O-RING

3шт.

8

KRJ12170

MANIFOLD VALVE

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

10

166352A1

BOLT

4шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

12

KHJ1349

ADAPTER

ASSY, Incl 7 (Qty 1), 28

1шт.

13

KHJ25900

SOCKET

ASSY, Incl 7 (Qty 1), 9

1шт.

14

KSJ16040

BRACKET

1шт.

15

KHJ1805

ELBOW

ASSY, Incl 6, 7 (Qty 1)

1шт.

16

KSJ13731

HYDRAULIC HOSE

Manifold valve to Control Valve

1шт.

17

KSJ20990

PIPE

Manifold valve to Control Valve

1шт.

18

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

19

KSJ21000

BRACKET

1шт.

20

KRJ11450

HOSE CLIP

2шт.

21

KRJ10800

PLATE

1шт.

22

166052A1

BOLT

2шт.

23

159198A1

ADAPTER

ASSY, Incl 4, 24 (Qty 1)

1шт.

24

154503A1

O-RING

3шт.

25

KHJ1804

ELBOW

ASSY, Incl 3, 24 (Qty 1)

1шт.

26

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

27

KSJ19120

HOSE

Control Valve to Control Valve

1шт.

28

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

29

KHJ10480

VALVE SECTION

ASSY, Incl 24 (Qty 1), 30

1шт.

30

NSS

NOT SOLD SEPARAT

Valve, Incl in 29

1шт.
