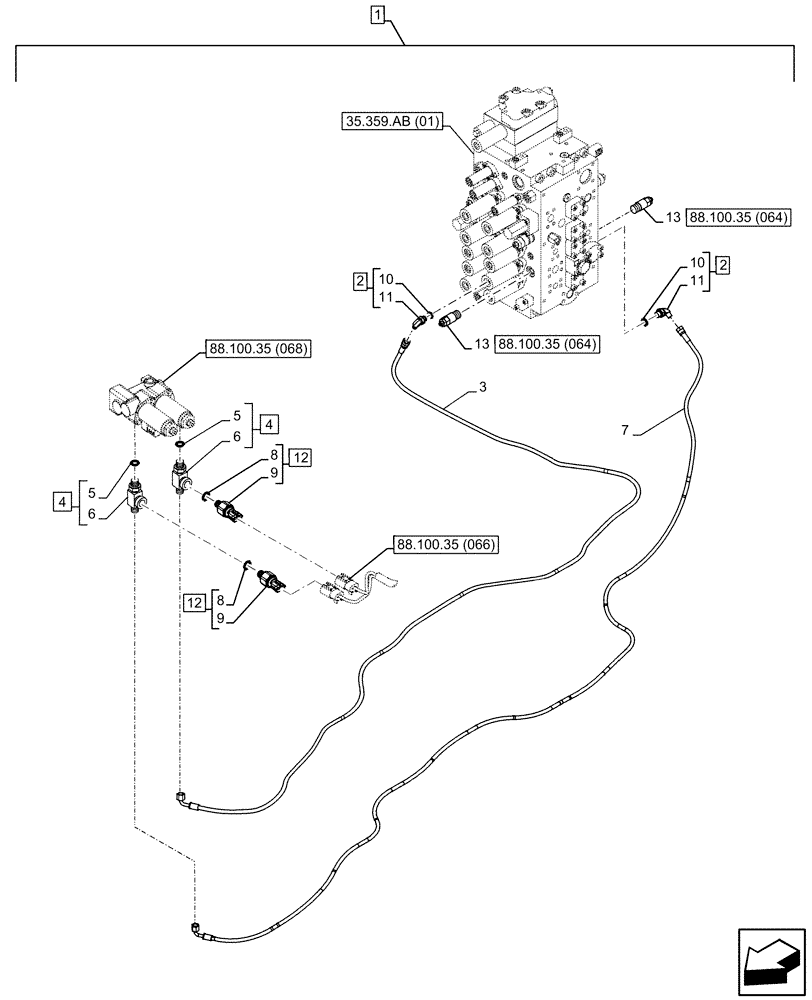

Запчасти Case CX350D LC (88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

1

KG1SP083-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28690

ELBOW

ASSY, Incl 10, 11

2шт.

3

KHJ13660

HYDRAULIC HOSE

Proportional Valve A1 Port to Control Valve PB2 Port, 6mm ID x 3300mm

1шт.

4

167666A1

FITTING

ASSY, Incl 5, 6

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

2шт.

7

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

Proportional Valve A2 Port to Control Valve PA2 Port

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 3

2шт.

10

155745A1

VALVE PRESSURE RELIE

2шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

2шт.

12

KHR26940

SENSOR

Pressure Sensor, 5MPa, ASSY, Incl 8, 9

2шт.

13

155745A1

VALVE PRESSURE RELIE

ASSY

2шт.
