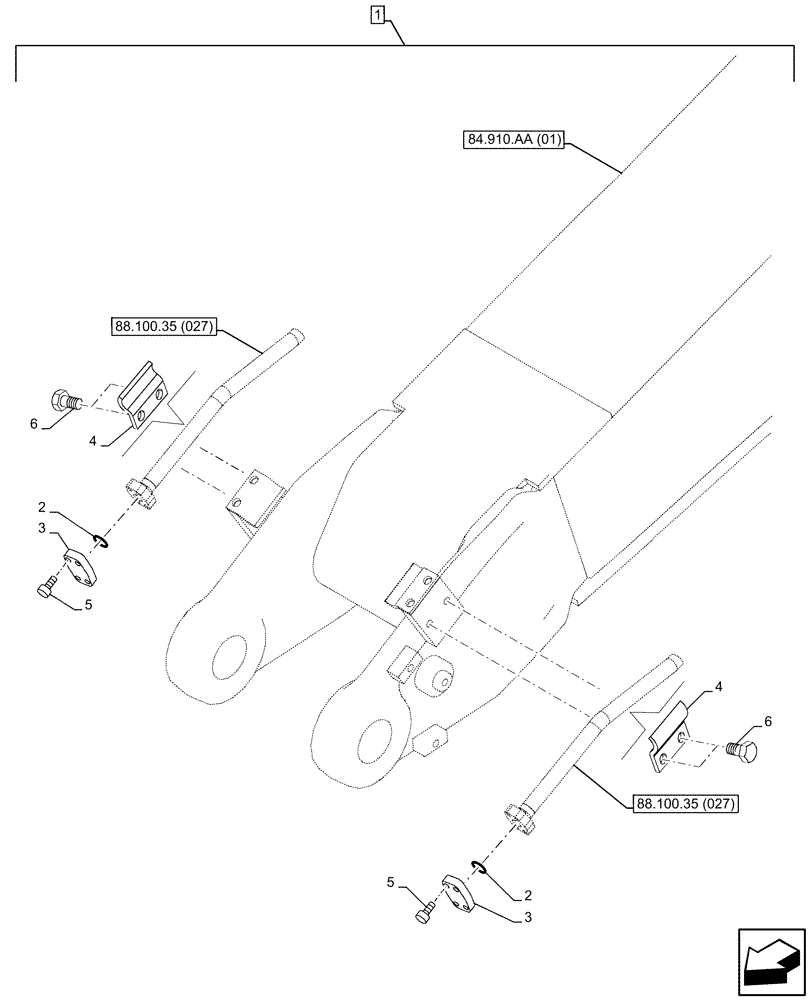

Запчасти Case CX350D LC (88.100.35[039]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

1

KG1SP077-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

2шт.

3

KUP0009

FLANGE

2шт.

4

KHV11070

COLLAR CLAMP

2шт.

5

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

6

166352A1

BOLT

M12 x 30mm

4шт.
