(88.100.35[034]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR

Запчасти Case CX350D LC (88.100.35[034]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

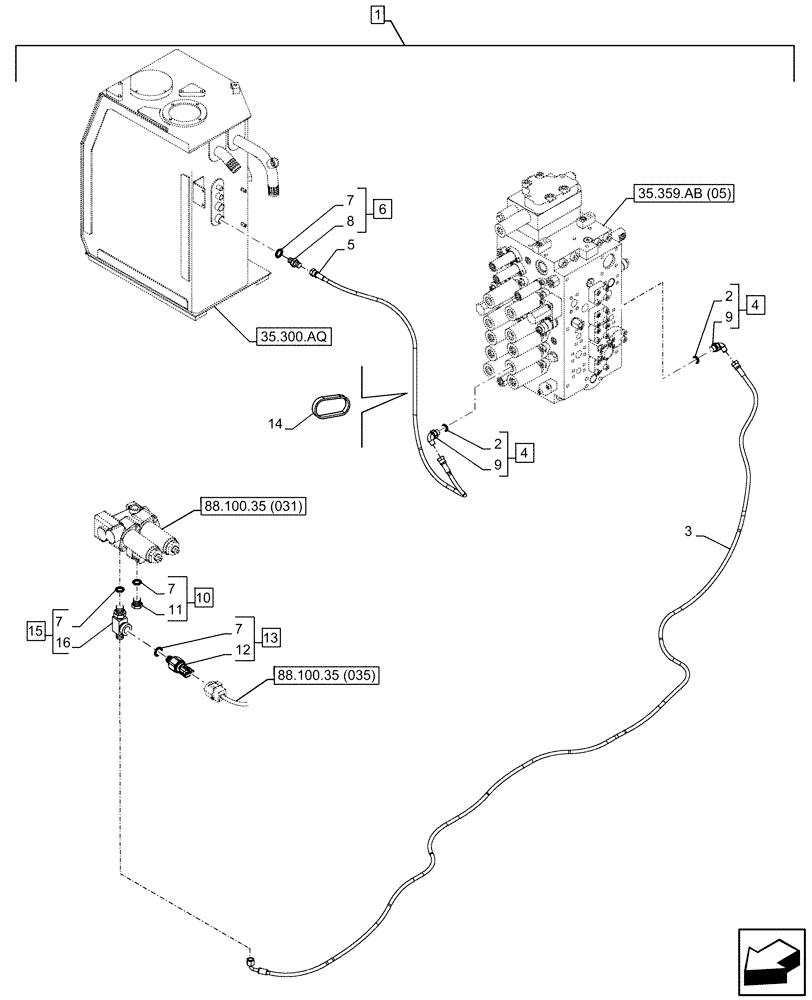

Схема запчастей Case CX350D LC - (88.100.35[034]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES
15
1
3
4
2
5
12
7
9
13
11
7
14
7
88.100.35 (035)
6
4
7
8
10
2
9
88.100.35 (031)
35.300.aq
16
35.359.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP077-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47759489

O-RING

2шт.

3

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

Foot Control Valve B Port to Control Valve PA2 Port

1шт.

4

47758277

ELBOW

G3/8" x G1/4", ASSY, Incl 2, 9

2шт.

5

KHJ2051

HOSE

Hydraulic Oil Tank to Control Valve PB2 port, 6mm ID x 1050mm

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 7 (Qty 1), 8

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

2шт.

10

159002A1

PLUG

C1 and A Ports, G1/4", ASSY, Incl 7 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 13

1шт.

13

KHR26940

SENSOR

Pressure Sensor, 5MPa, C2 Port, ASSY, Incl 7 (Qty 1), 12

1шт.

14

150496A1

MOUNTING CLIP

L=250mm

1шт.

15

167666A1

FITTING

ASSY, Incl 7 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.
