(88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX350D LC (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

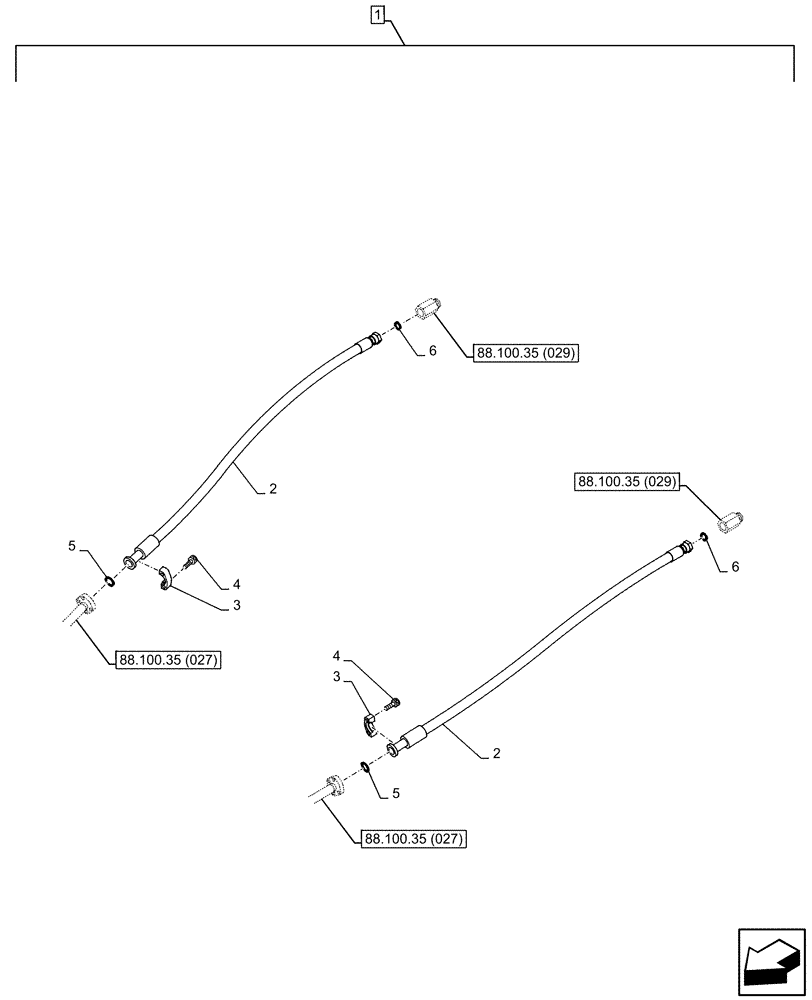

Схема запчастей Case CX350D LC - (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
3
2
88.100.35 (027)
1
88.100.35 (027)
5
6
4
88.100.35 (029)
4
2
88.100.35 (029)
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP077-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KSJ19110

HOSE

Boom Line to Manifold Valve

2шт.

3

150124A1

FLANGE

4шт.

4

108R014Y055R

BOLT

M14 x 55mm

8шт.

5

164450A1

O-RING

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
