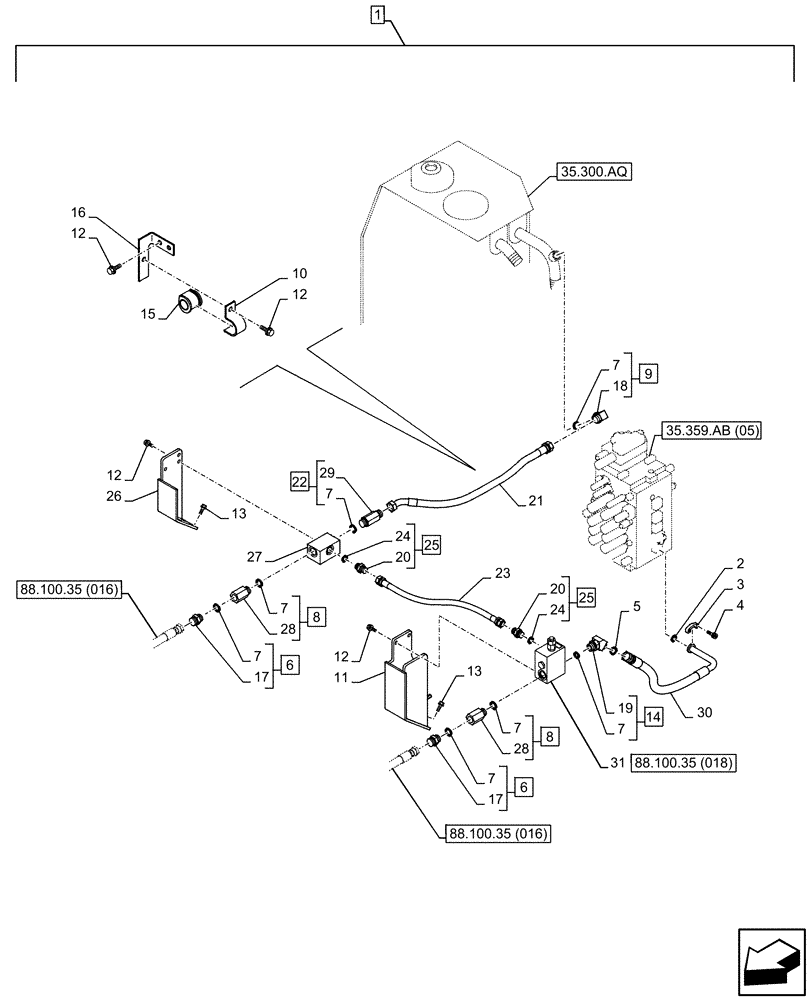

Запчасти Case CX350D LC (88.100.35[017]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG1SP075-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 31

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

ASSY, Incl 7 (Qty 2), 17

2шт.

7

154523A1

O-RING

7шт.

8

KHJ25900

SOCKET

ASSY, Incl 7 (Qty 2), 28

2шт.

9

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 7 (Qty 1), 18

1шт.

10

KBJ11860

SUPPORT

1шт.

11

KSJ17120

BRACKET

1шт.

12

166352A1

BOLT

7шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

14

KHJ11370

ELBOW

ASSY, Incl 7 (Qty 1), 19

1шт.

15

KHJ2680

COLLAR CLAMP

1шт.

16

KBJ15230

BRACKET, SUPPORTING

1шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

18

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 9

1шт.

19

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 14

1шт.

20

NSS

NOT SOLD SEPARAT

Fitting, Incl in 25

2шт.

21

KSJ19130

HOSE

Manifold Valve to Hydraulic Oil Tank

1шт.

22

KTJ1261

STUD

ASSY, Incl 7 (Qty 1), 29

1шт.

23

KSJ17140

HYDRAULIC HOSE

Manifold Valve Side to Relief Valve T Port

1шт.

24

154503A1

O-RING

2шт.

25

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 20, 24

2шт.

26

KSJ16040

BRACKET

1шт.

27

KRJ16400

MANIFOLD VALVE

1шт.

28

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

2шт.

29

NSS

NOT SOLD SEPARAT

Stud, Incl in 22

1шт.

30

KSJ19080

HOSE

Relief Valve A Port to Control Valve A2 Port

1шт.

31

KHJ15050

VALVE PRESSURE RELIE

ASSY

1шт.
