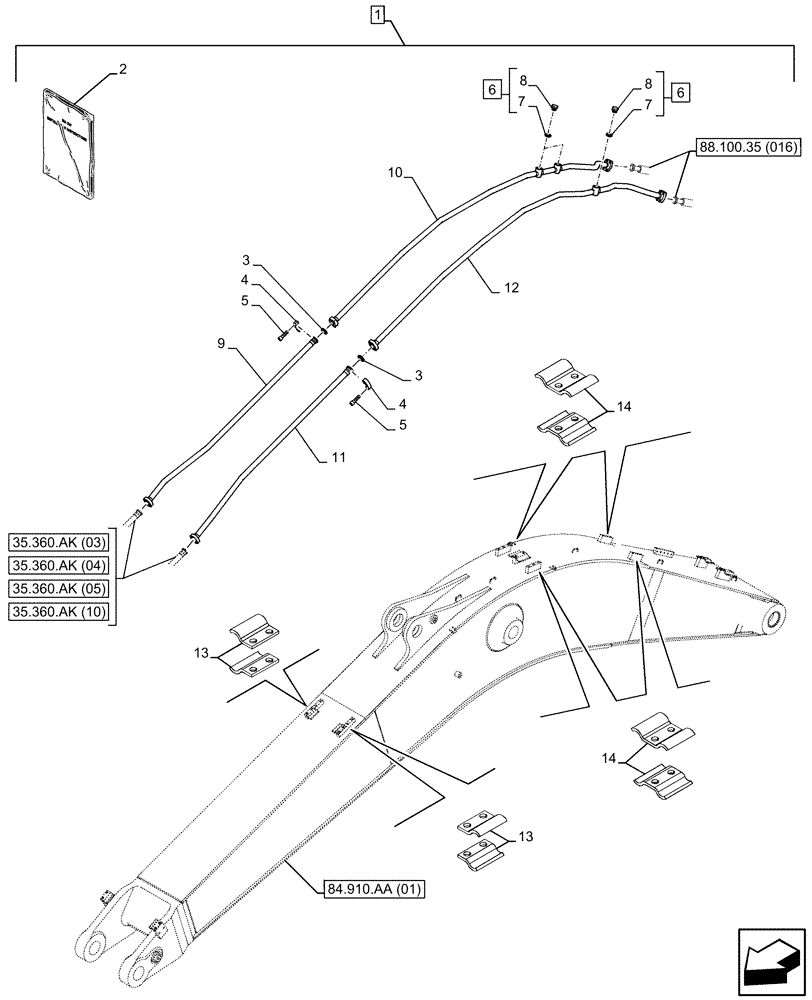

Запчасти Case CX350D LC (88.100.35[015]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1SP075-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47757377

INSTRUCTION

1шт.

3

153626A1

O-RING

2шт.

4

150124A1

FLANGE

4шт.

5

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

6

152924A1

PLUG

ASSY, Incl 7, 8

3шт.

7

150542A1

O-RING

3шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

9

KSV24560

PIPE

Down, RH

1шт.

10

KSV24571

PIPE

Upper, RH

1шт.

11

KSV24530

PIPE

Down, LH

1шт.

12

KSV24541

PIPE

Upper, LH

1шт.

13

KHV11060

COLLAR CLAMP

4шт.

14

KHV11200

PIPE CLAMP

8шт.
