(88.100.35[007]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.25M)

Запчасти Case CX350D LC (88.100.35[007]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.25M) (88) - ACCESSORIES

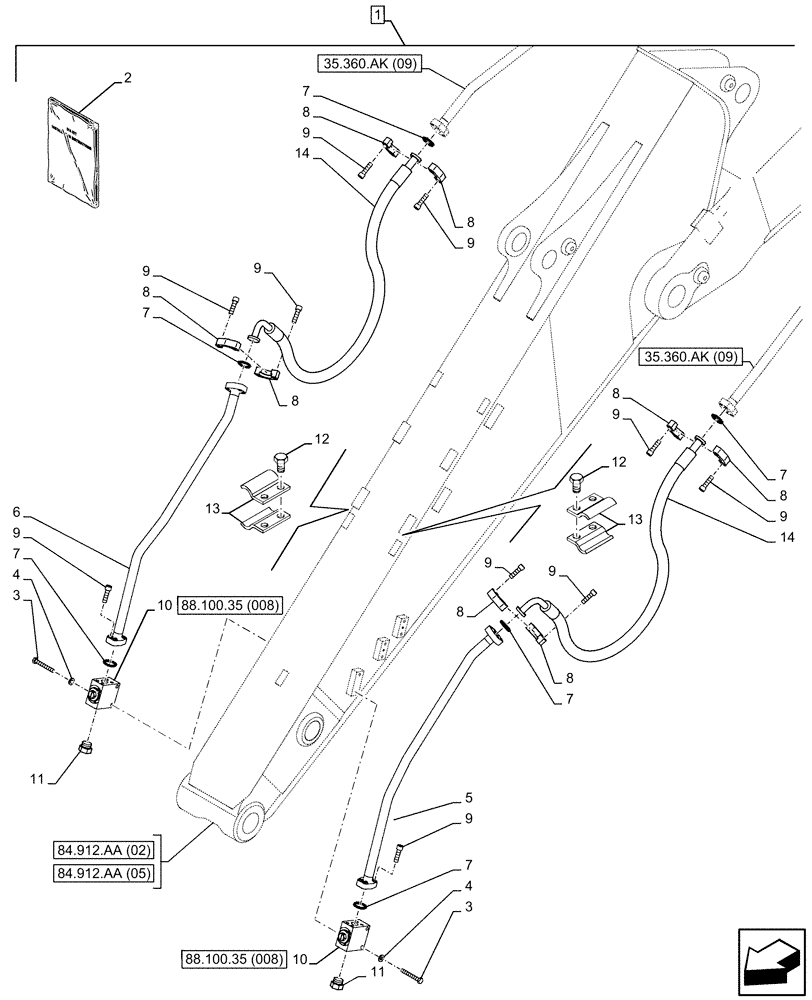

Схема запчастей Case CX350D LC - (88.100.35[007]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.25M) (88) - ACCESSORIES
9
10
11
9
88.100.35 (008)
7
14
3
8
7
9
84.912.aa (02)
7
6
8
14
9
84.912.aa (05)
5
8
8
35.360.ak (09)
9
10
13
13
2
12
7
1
12
4
8
9
8
7
9
8
9
4
88.100.35 (008)
7
3
9
8
11
35.360.ak (09)
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP108-00

CONSTRUCTION DIA

Option Line, Bar Base, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47788998

INSTRUCTION

1шт.

2

47789035

INSTRUCTION

1шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

4

150811A1

WASHER

4шт.

5

KSV24520

PIPE

1шт.

6

KSV24550

PIPE

1шт.

7

164450A1

O-RING

6шт.

8

150124A1

FLANGE

8шт.

9

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

24шт.

10

KHV12250

SHUT-OFF VALVE

ASSY

2шт.

11

162335A1

PLUG

2шт.

12

166352A1

BOLT

4шт.

13

KHV11060

COLLAR CLAMP

4шт.

14

KSV25490

HYDRAULIC HOSE

2шт.
