(88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M)

Запчасти Case CX350D LC (88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M) (88) - ACCESSORIES

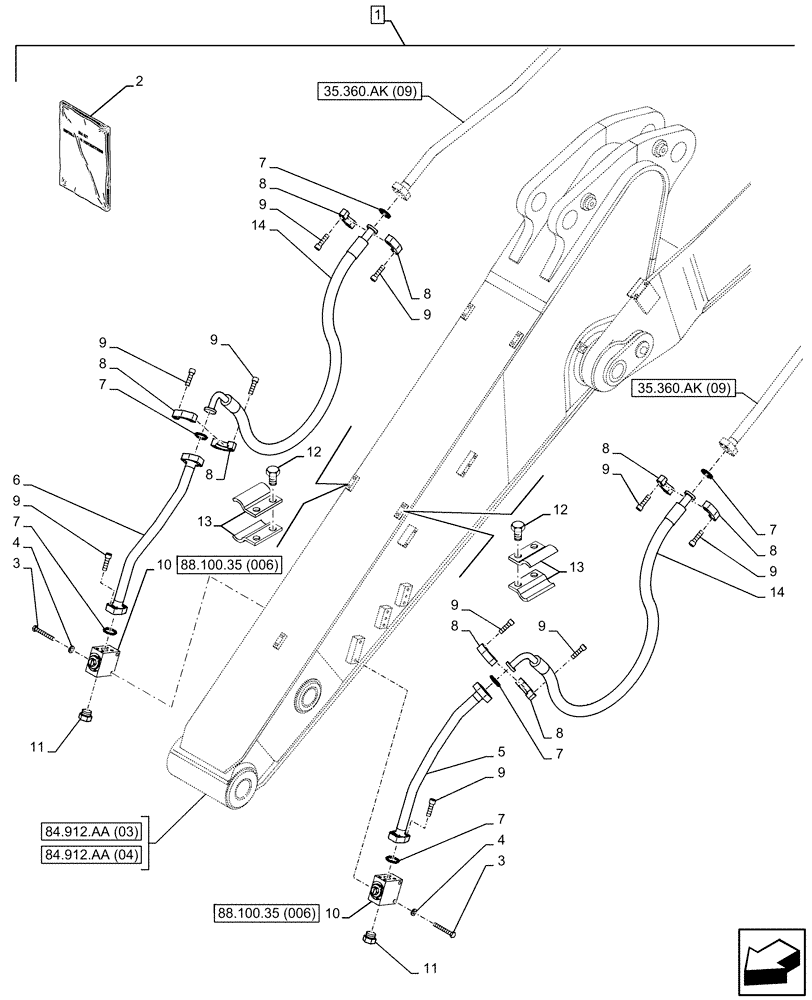

Схема запчастей Case CX350D LC - (88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M) (88) - ACCESSORIES
7
35.360.ak (09)
1
8
8
6
5
13
12
11
84.912.aa (03)
84.912.aa (04)
3
9
8
7
11
7
4
14
10
8
9
88.100.35 (006)
9
10
7
9
7
9
8
9
9
8
7
9
14
88.100.35 (006)
9
8
3
8
2
12
35.360.ak (09)
13
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP110-00

CONSTRUCTION DIA

Option Line, Bar Base, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789001

INSTRUCTION

1шт.

2

47789038

INSTRUCTION

1шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

4

150811A1

WASHER

4шт.

5

KSV29340

PIPE

1шт.

6

KSV29350

PIPE

1шт.

7

164450A1

O-RING

6шт.

8

150124A1

FLANGE

8шт.

9

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

24шт.

10

KHV12250

SHUT-OFF VALVE

ASSY

2шт.

11

162335A1

PLUG

2шт.

12

166352A1

BOLT

4шт.

13

KHV11060

COLLAR CLAMP

4шт.

14

KSV25490

HYDRAULIC HOSE

2шт.
