(88.100.10[02]) - DIA KIT, HYDRAULIC OIL, ENGINE OIL FILTER, DRAIN LINE

Запчасти Case CX350D LC (88.100.10[02]) - DIA KIT, HYDRAULIC OIL, ENGINE OIL FILTER, DRAIN LINE (88) - ACCESSORIES

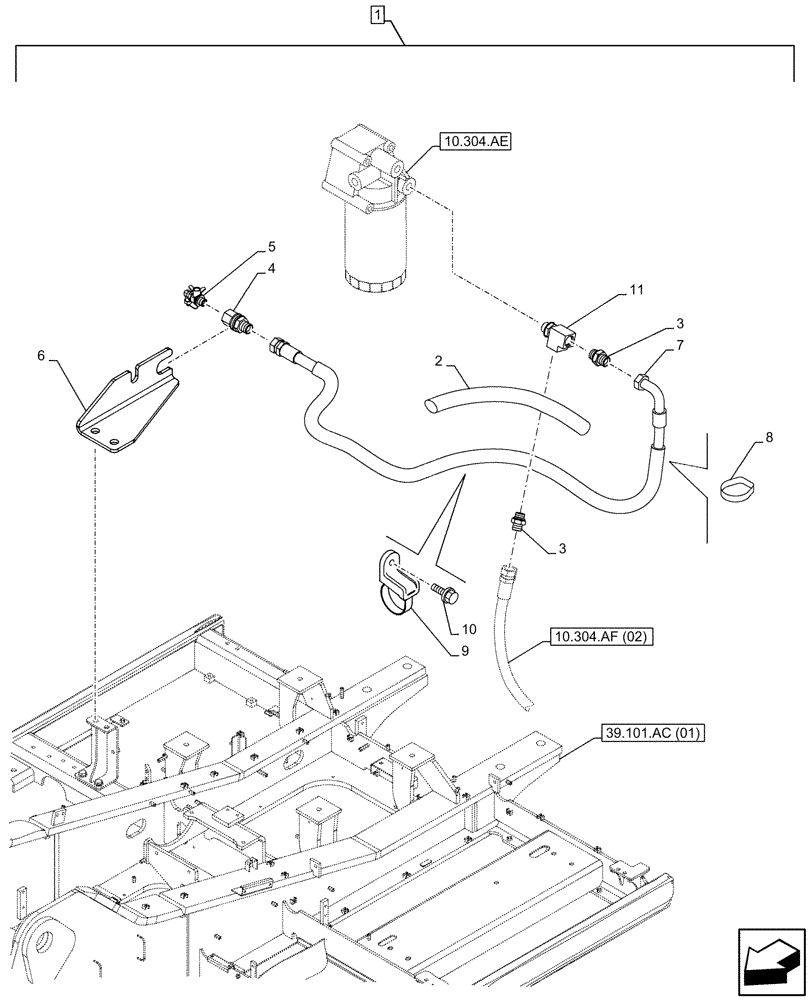

Схема запчастей Case CX350D LC - (88.100.10[02]) - DIA KIT, HYDRAULIC OIL, ENGINE OIL FILTER, DRAIN LINE (88) - ACCESSORIES
9
5
10.304.af (02)
4
7
6
11
2
10
39.101.ac (01)
1
8
3
3
10.304.ae
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP102-00

CONSTRUCTION DIA

Oil Sampling, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

157866A1

PLASTIC-RUBBER TUBE,28 mm ID, 34 mm OD, 1000 mm Length

28mm ID x 1000mm

1шт.

3

KHH14620

ADAPTER

G3/4" x G3/4"

2шт.

4

KHH17400

ADAPTER

1шт.

5

KBH14721

COCK

1шт.

6

KSH14740

BRACKET

1шт.

7

KSH14710

HOSE

1шт.

8

150496A1

MOUNTING CLIP

250mm

4шт.

9

KHR2581

CLAMP

2шт.

10

KHJ1215

BOLT,Spcl

2шт.

11

KHH17360

TEE

G3/4"

1шт.
