(88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE

Запчасти Case CX350D LC (88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE (88) - ACCESSORIES

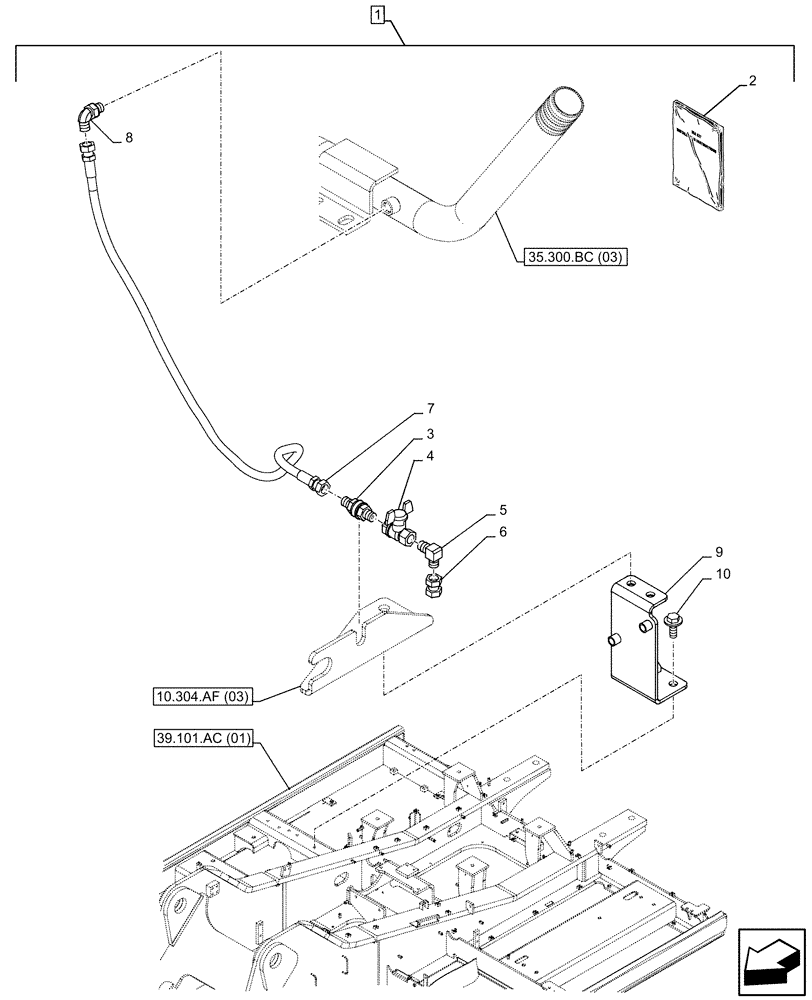

Схема запчастей Case CX350D LC - (88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE (88) - ACCESSORIES
5
7
10
1
9
3
10.304.af (03)
6
8
39.101.ac (01)
2
4
35.300.bc (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1SP102-00

CONSTRUCTION DIA

Oil Sampling, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789018

INSTRUCTION

1шт.

2

47789048

INSTRUCTION

1шт.

3

162640A1

ADAPTER

1шт.

4

158923A1

DRAIN VALVE

1шт.

5

153596A1

ADAPTER

1шт.

6

158842A1

PLUG

1шт.

7

KHJ28500

HYDRAULIC HOSE

1шт.

8

KHJ28580

ELBOW

1шт.

9

KSJ22170

BRACKET

1шт.

10

166352A1

BOLT

2шт.
