(84.912.AD[02]) - VAR - 461545, 461546, 481243, 481245, 481265, 781184 - ARM, CYLINDER, BUSHING

Запчасти Case CX350D LC (84.912.AD[02]) - VAR - 461545, 461546, 481243, 481245, 481265, 781184 - ARM, CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

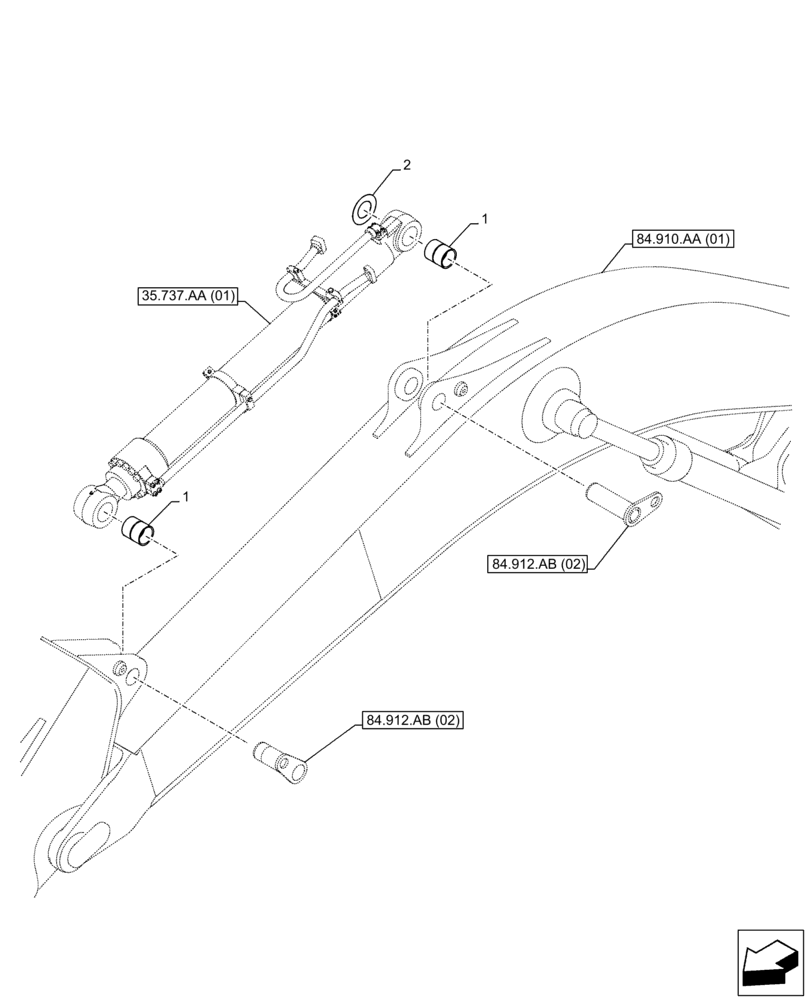

Схема запчастей Case CX350D LC - (84.912.AD[02]) - VAR - 461545, 461546, 481243, 481245, 481265, 781184 - ARM, CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
84.912.ab (02)
1
1
2
84.910.aa (01)
84.912.ab (02)
35.737.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV1314

SELF LUB RING

2шт.

Parts is included in Arm Cylinder Assembly PN KSV25611

1шт.

2

158451A1

SPACER

2шт.

Выбрано товаров: 3
