(84.100.AM[02]) - VAR - 461546, 481243 - BUCKET CYLINDER, BUSHING

Запчасти Case CX350D LC (84.100.AM[02]) - VAR - 461546, 481243 - BUCKET CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

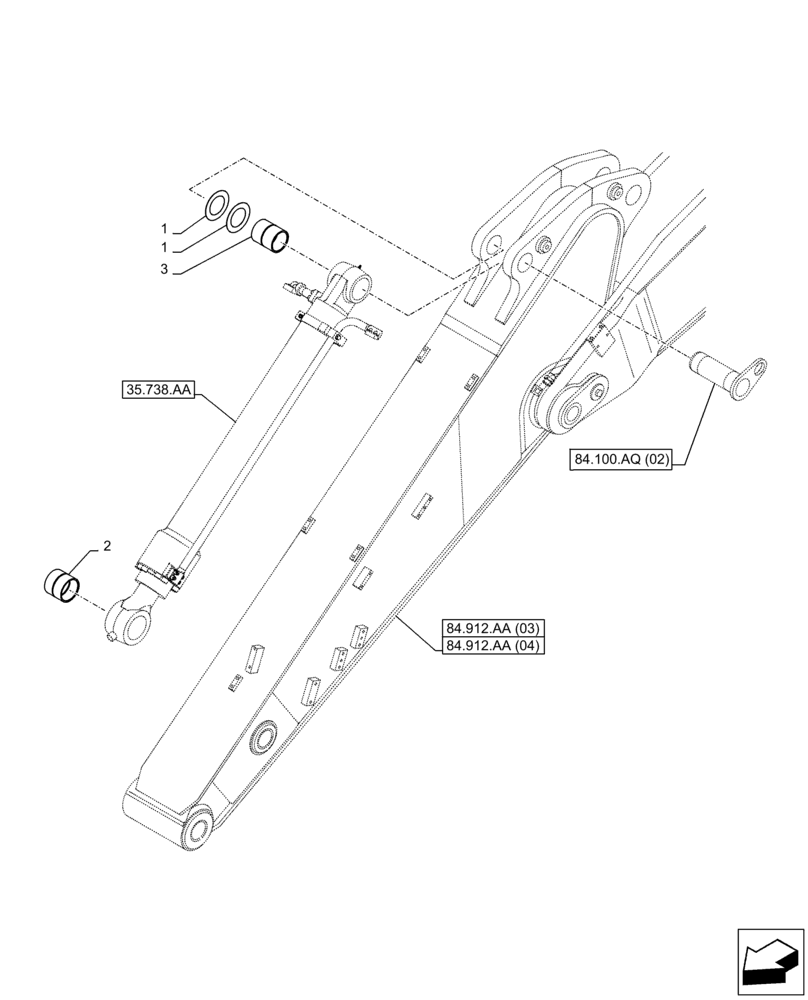

Схема запчастей Case CX350D LC - (84.100.AM[02]) - VAR - 461546, 481243 - BUCKET CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
35.738.aa
3
1
84.100.aq (02)
2
1
84.912.aa (03)
84.912.aa (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSP0828

SHIM,1.2mm Thk

2шт.

2

KSV1317

SELF LUB RING

1шт.

Parts is included in Cylinder Assembly PN KSV25291

1шт.

3

KSV1332

SELF LUB RING

1шт.

Parts is included in Cylinder Assembly PN KSV25291

1шт.

Выбрано товаров: 5
