(84.100.AM[01]) - VAR - 461545, 481245 - BUCKET CYLINDER, BUSHING (ARM L=3.25M)

Запчасти Case CX350D LC (84.100.AM[01]) - VAR - 461545, 481245 - BUCKET CYLINDER, BUSHING (ARM L=3.25M) (84) - BOOMS, DIPPERS & BUCKETS

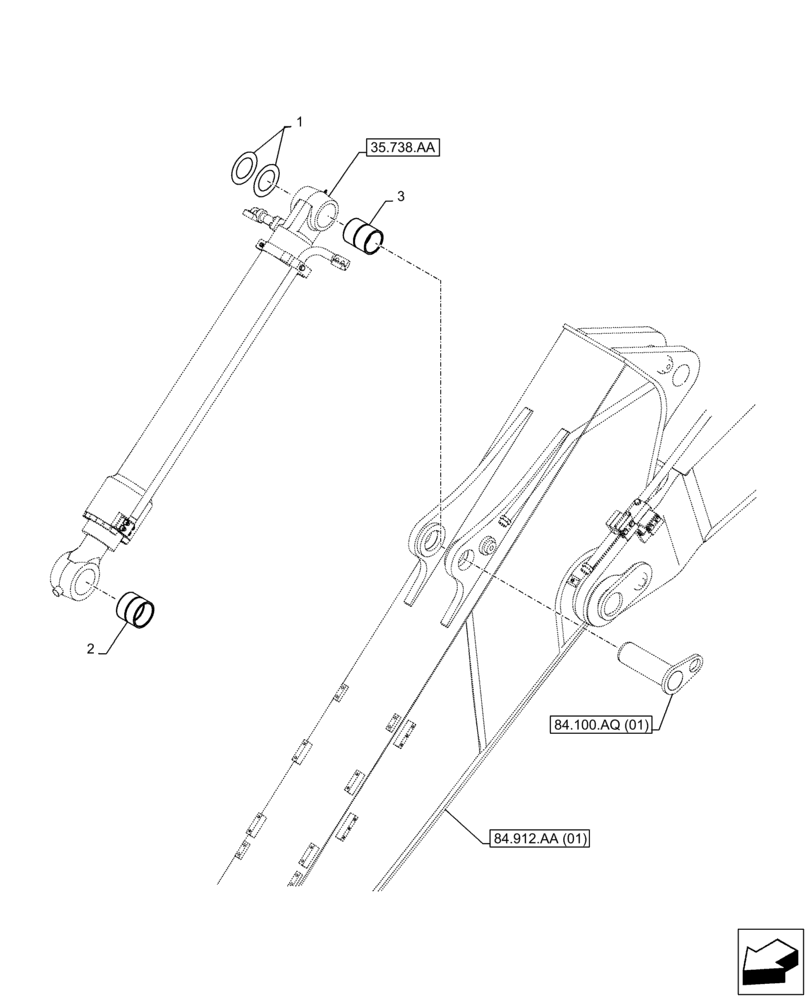

Схема запчастей Case CX350D LC - (84.100.AM[01]) - VAR - 461545, 481245 - BUCKET CYLINDER, BUSHING (ARM L=3.25M) (84) - BOOMS, DIPPERS & BUCKETS
1
3
84.100.aq (01)
2
84.912.aa (01)
35.738.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSP0828

SHIM,1.2mm Thk

2шт.

2

KSV1317

SELF LUB RING

1шт.

Parts is included in Cylinder Assembly PN KSV25291

1шт.

3

KSV1332

SELF LUB RING

1шт.

Parts is included in Cylinder Assembly PN KSV25291

1шт.

Выбрано товаров: 5
