(55.530.AD[01]) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS

Запчасти Case CX350D LC (55.530.AD[01]) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

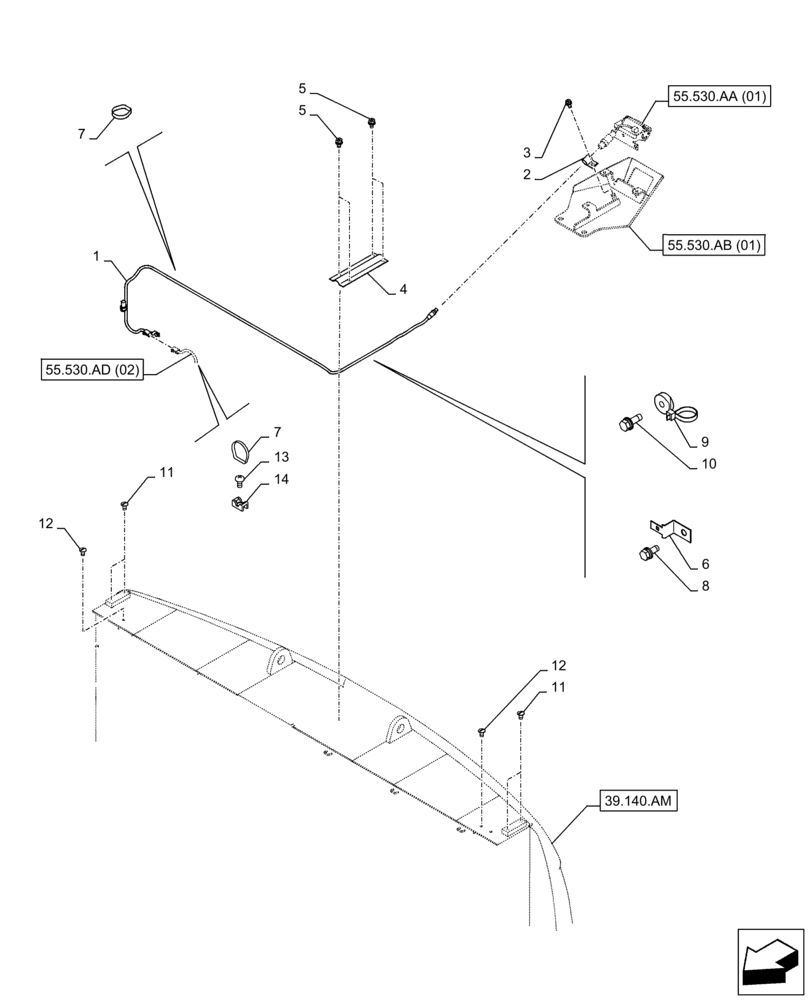

Схема запчастей Case CX350D LC - (55.530.AD[01]) - VAR - 461504 - REAR VIEW CAMERA, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
1
2
4
10
6
5
7
3
8
39.140.am
14
13
55.530.ab (01)
9
11
7
5
12
55.530.aa (01)
55.530.ad (02)
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR39680

WIRE HARNESS

Rear Camera Harness

1шт.

2

157806A1

COLLAR

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

1шт.

4

KHR35580

, Serial Range: -C415

1шт.

4

KHR40380

COVER

, Start Serial: D0415

1шт.

5

KHN2308

SCREW

M8 x 16mm

4шт.

6

165405A1

CLIP

1шт.

7

150496A1

MOUNTING CLIP

250mm

10шт.

8

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

9

KHR2584

CLAMP

1шт.

10

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

11

KHJ15060

CAP

M10

4шт.

12

KHJ15080

CAP

M8

4шт.

13

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

14

150860A1

COLLAR

2шт.
