(55.530.AB[01]) - VAR - 461504, 461560 - REAR VIEW CAMERA, SUPPORT, BRACKET

Запчасти Case CX350D LC (55.530.AB[01]) - VAR - 461504, 461560 - REAR VIEW CAMERA, SUPPORT, BRACKET (55) - ELECTRICAL SYSTEMS

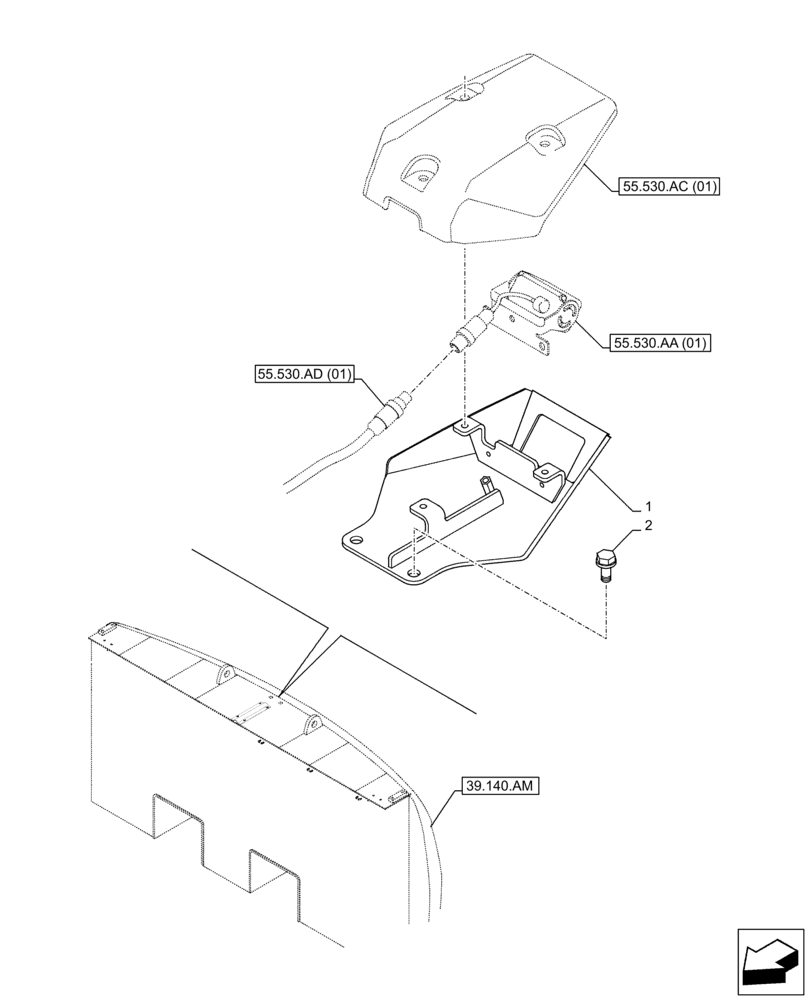

Схема запчастей Case CX350D LC - (55.530.AB[01]) - VAR - 461504, 461560 - REAR VIEW CAMERA, SUPPORT, BRACKET (55) - ELECTRICAL SYSTEMS
2
55.530.aa (01)
1
55.530.ad (01)
55.530.ac (01)
39.140.am
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR35530B1

, Serial Range: -C0409

1шт.

1

KHR40220B1

BRACKET

, Start Serial: D0409

1шт.

2

166350A1

BOLT

, Serial Range: -C0409

2шт.

2

166052A1

BOLT

M10 x 25mm, Start Serial: D0409

2шт.

Выбрано товаров: 0
