(55.512.AA[02]) - VAR - 781833 - RADIO

Запчасти Case CX350D LC (55.512.AA[02]) - VAR - 781833 - RADIO (55) - ELECTRICAL SYSTEMS

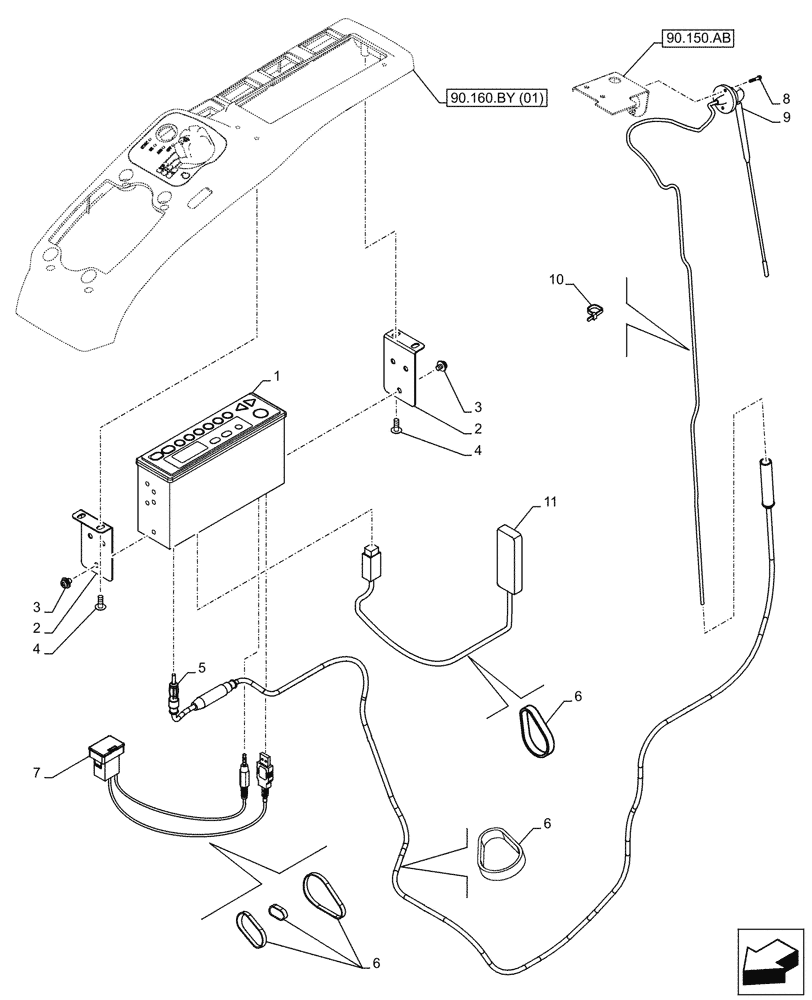

Схема запчастей Case CX350D LC - (55.512.AA[02]) - VAR - 781833 - RADIO (55) - ELECTRICAL SYSTEMS
90.150.ab
6
6
2
2
3
1
5
9
11
4
10
6
8
3
4
7
90.160.by (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR44180

RADIO

1шт.

2

KHR3572

BRACKET

2шт.

3

157537A1

SCREW

4шт.

4

KHR2737

SELF-TAP SCREW

4шт.

5

KHR32890

CABLE

1шт.

6

150496A1

MOUNTING CLIP

6шт.

7

KHR44200

RADIO

1шт.

8

KHN16110

SCREW

M4 x 20mm

2шт.

Part is Included in Cab Assembly PN KHN371430(NA)

1шт.

9

KHN25790

ANTENNA

1шт.

Part is Included in Cab Assembly PN KHN371430(NA)

1шт.

10

KHN17180

MOUNTING CLIP

2шт.

Part is Included in Cab Assembly PN KHN371430(NA)

1шт.

11

KHR42000

RADIO

Bluetooth

1шт.
