(55.510.BO[01]) - MAIN, WIRE HARNESS

Запчасти Case CX350D LC (55.510.BO[01]) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

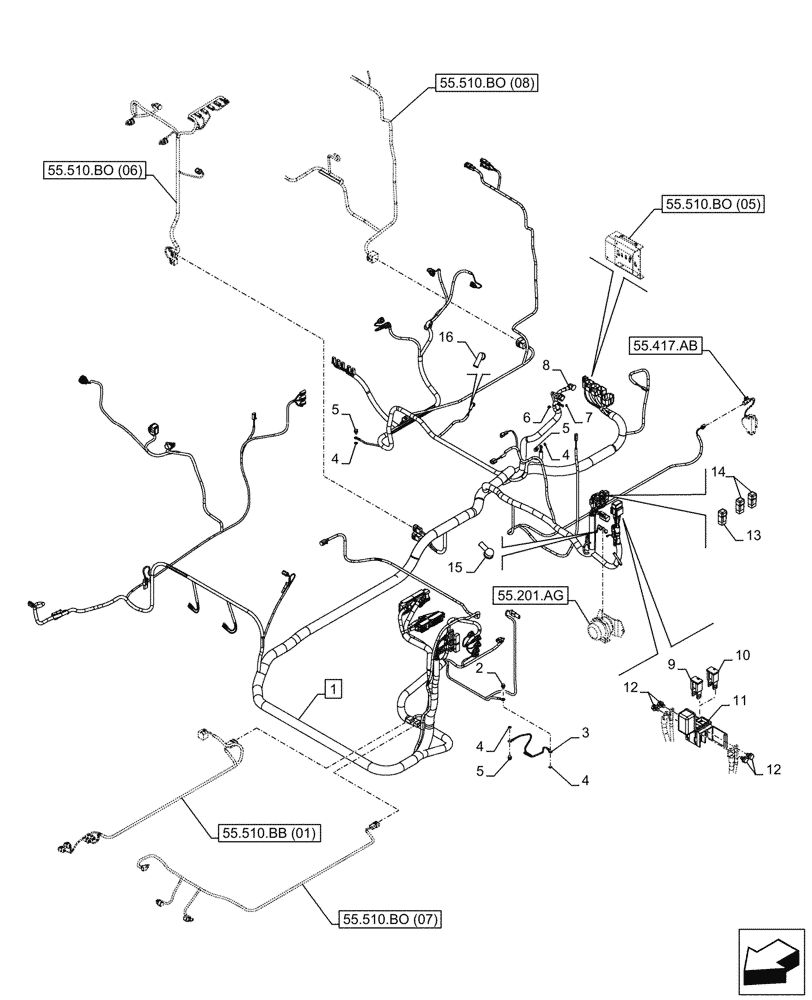

Схема запчастей Case CX350D LC - (55.510.BO[01]) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.510.bo (07)
4
4
4
15
5
9
2
11
10
6
14
13
3
12
8
7
16
1
5
5
4
12
55.510.bo (05)
55.201.ag
55.510.bo (08)
55.417.ab
55.510.bo (06)
55.510.bb (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSR15250

WIRE HARNESS

Main Frame, ASSY, Incl 9, 10, 13, 14, Serial Range: -C0401

1шт.

1

KSR15251

WIRE HARNESS

Main Frame, ASSY, Incl 8, 13, 14, 15, 16, Start Serial: D0401

1шт.

2

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

3

KHR28730

GROUND CABLE

1шт.

4

893-11008

LOCK WASHER,Ext Tooth, M8

4шт.

5

167518A1

BOLT

M8 x 16mm

3шт.

6

KHR1828

BOLT,Spcl

M5 x 12mm

1шт.

7

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

8

159182A1

DUST CAP

, Start Serial: D0401

1шт.

9

KHR39850

FUSE

High Current, B1, 100A

1шт.

10

KHR39840

FUSE

High Current, B1, 60A

1шт.

11

KHR42470

FUSE HOLDER

1шт.

12

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

M6 x 10mm

4шт.

13

KHR3850

FUSE

High Current, A3, 50A

1шт.

14

KHR12950

FUSE

High Current, A3, 60A

2шт.

15

159171A1

CAP

, Start Serial: D0401

1шт.

16

159173A1

CAP

, Start Serial: D0401

1шт.
