(55.510.BB[01]) - VAR - 461865, 461871, 461869 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (55.510.BB[01]) - VAR - 461865, 461871, 461869 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

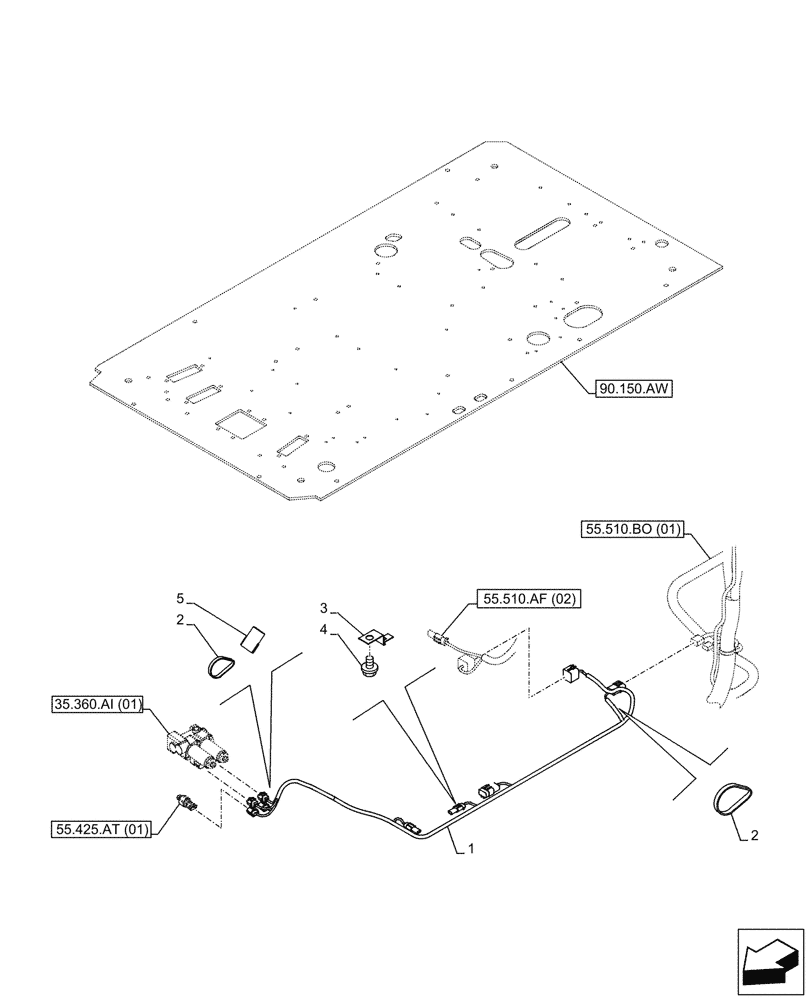

Схема запчастей Case CX350D LC - (55.510.BB[01]) - VAR - 461865, 461871, 461869 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
90.150.aw
3
4
5
2
2
1
55.510.af (02)
35.360.ai (01)
55.425.at (01)
55.510.bo (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR39501

WIRE HARNESS

1шт.

2

150496A1

MOUNTING CLIP

250mm

2шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

5

KHR45330

ELEC CONNECTOR

1шт.
