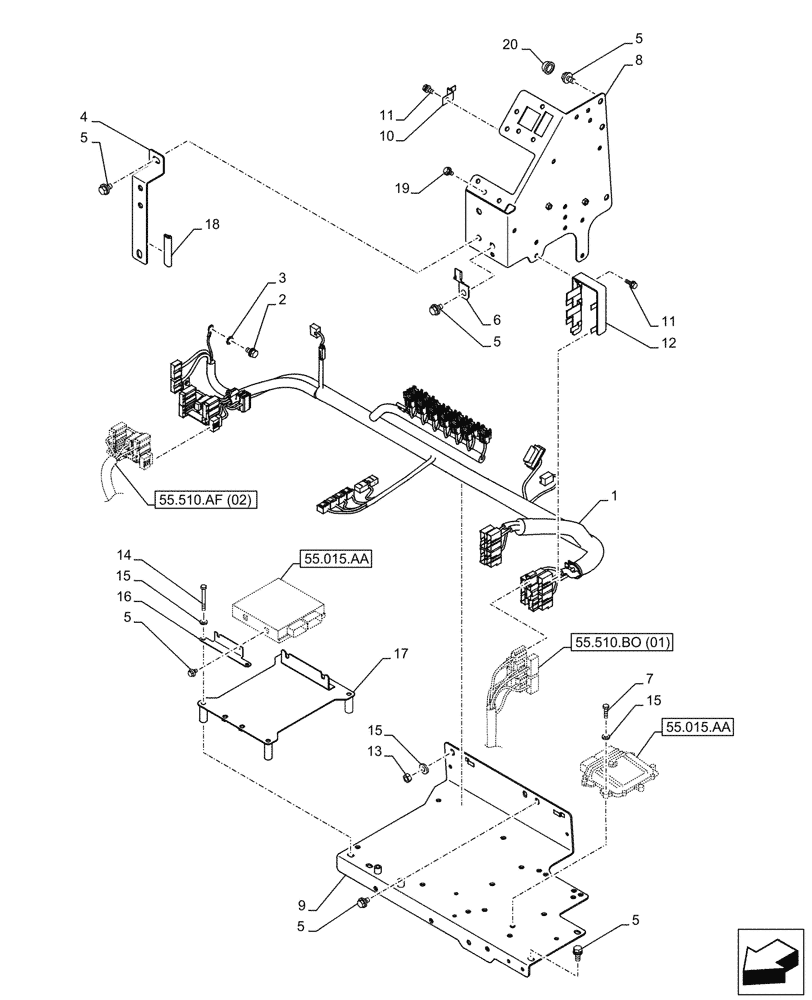

Запчасти Case CX350D LC (55.510.AF[01]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KHR39210

WIRE HARNESS

Cab, Serial Range: -C0411

1шт.

1

KHR39211

WIRE HARNESS

Cab, Start Serial: D0411

1шт.

2

167518A1

BOLT

M8 x 16mm

1шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

4

KHR28460

BRACKET, SUPPORTING

1шт.

5

166345A1

BOLT

M8 x 16mm

15шт.

6

KHR3748

COLLAR

1шт.

7

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

8

KHR41380

BRACKET

1шт.

9

KHR39991

BRACKET

1шт.

10

165405A1

CLIP

1шт.

11

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

12

KHR41390

BRACKET

1шт.

13

162R008SR

SPRING WASHER

1шт.

14

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

4шт.

15

153081A1

WASHER

9шт.

16

KHR35241

BRACKET

1шт.

17

KHR35230

BRACKET

1шт.

18

KHR23490

PADDING

1шт.

19

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

4шт.

20

KHR45750

CAP

, Start Serial: D0412

1шт.
