Запчасти Case CX350D LC (55.425.AT[02]) - VAR - 461869 - PRESSURE, SENSOR, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

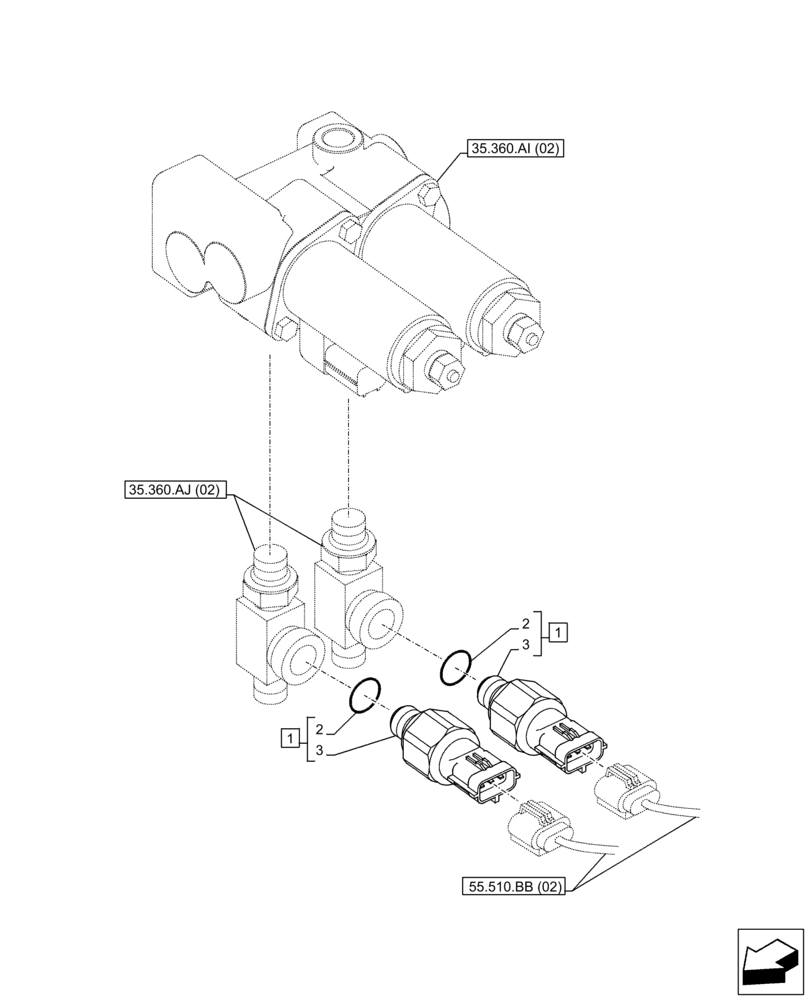

![Схема запчастей Case CX350D LC - (55.425.AT[02]) - VAR - 461869 - PRESSURE, SENSOR, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/5304718.png)
35.360.ai (02)
2
55.510.bb (02)
1
3
2
35.360.aj (02)
1
3
№
Артикул
Название
Примечание
Количество
1
KHR26940
SENSOR
ASSY, Incl 2 - 3
2шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
3
NSS
NOT SOLD SEPARAT
Sensor Pressure, Incl in 1
2шт.
Выбрано товаров: 3
