(55.425.AI) - VAR - 461863 - ROTATION, SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (55.425.AI) - VAR - 461863 - ROTATION, SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

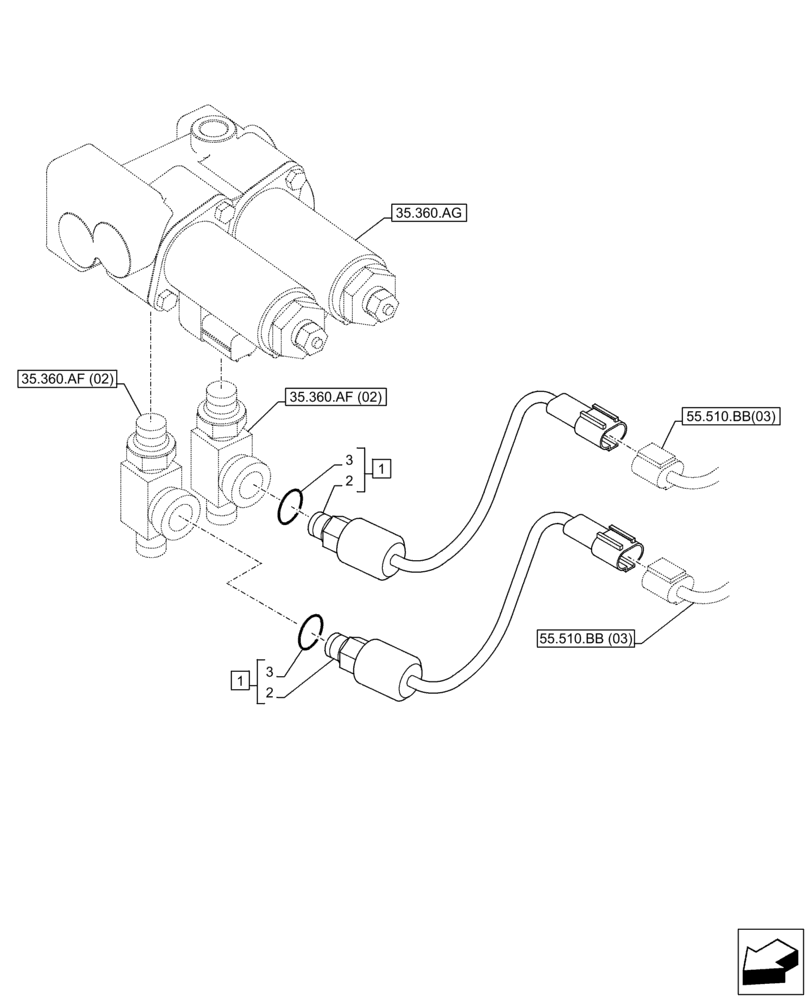

Схема запчастей Case CX350D LC - (55.425.AI) - VAR - 461863 - ROTATION, SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
1
35.360.af (02)
35.360.af (02)
2
3
55.510.bb(03)
55.510.bb (03)
1
3
2
35.360.ag
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR21490

PRESSURE SWITCH

ASSY, Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Sensor Pressor 0.49 Pa

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

Выбрано товаров: 3
