(55.408.CH) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE

Запчасти Case CX350D LC (55.408.CH) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS

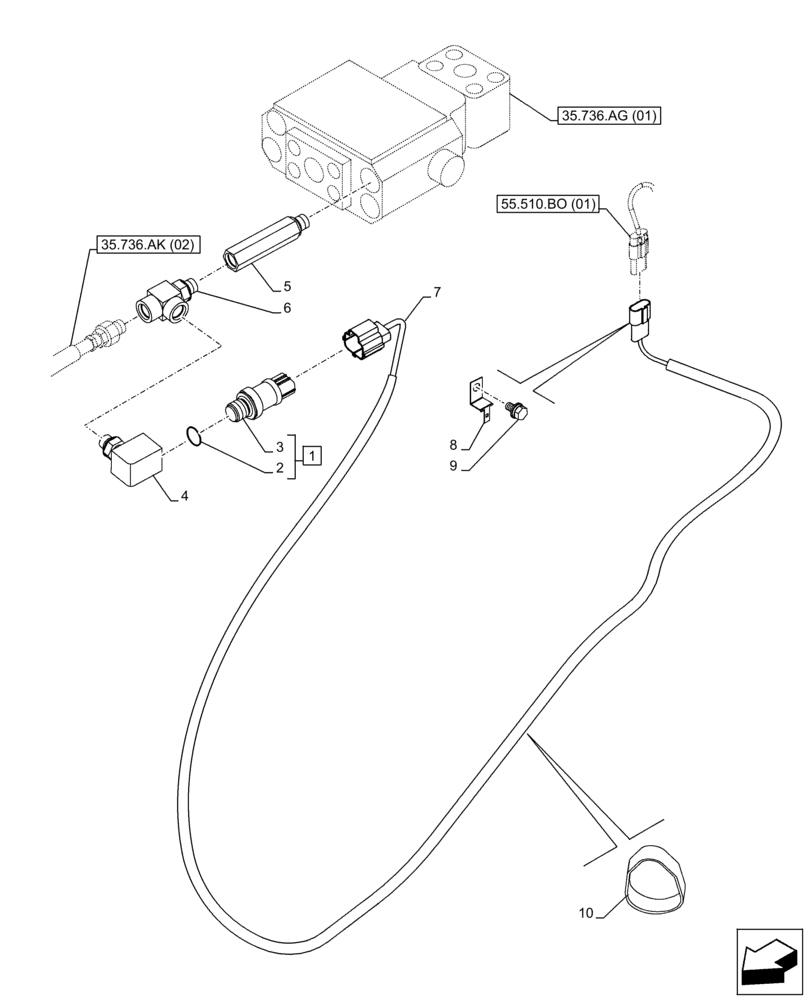

Схема запчастей Case CX350D LC - (55.408.CH) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS
5
10
55.510.bo (01)
3
9
35.736.ak (02)
6
2
1
7
4
8
35.736.ag (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR10290

SENSOR

ASSY, Incl 2, 3, Serial Range: -C0419

1шт.

1

KHR41950

SENSOR

ASSY, Incl 2, 3, Start Serial: D0419

1шт.

2

154483A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

Pressure Sensor, 50MPA, Incl in 1

1шт.

4

KHJ31800

ELBOW

G1/4" x M18mm

1шт.

5

AEV10150

STUD

1шт.

6

KHJ12530

TEE

G1/4"

1шт.

7

KHR42860

WIRE HARNESS

1шт.

8

158962A1

CLIP

1шт.

9

167518A1

BOLT

M8 x 16mm

1шт.

10

150496A1

MOUNTING CLIP

250mm

2шт.
