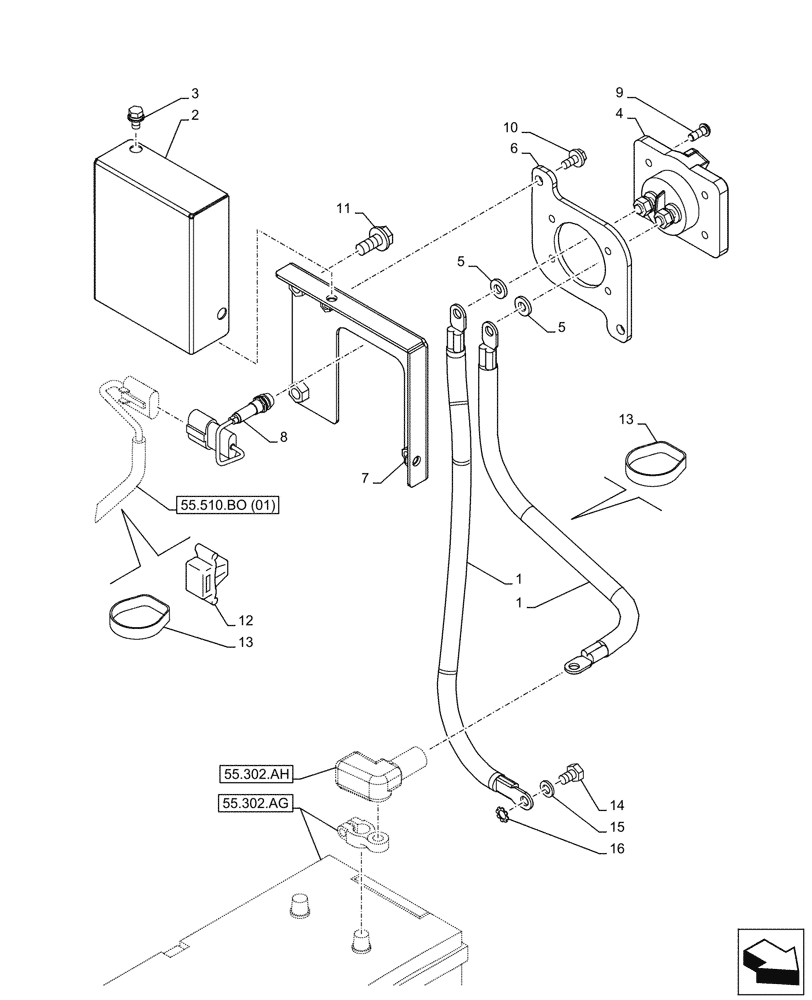

Запчасти Case CX350D LC (55.302.AI[02]) - BATTERY ISOLATOR, SWITCH - ASN - NGS7P1158 (55) - ELECTRICAL SYSTEMS

1

KHR39970

POS BATTERY CABLE

2шт.

2

KSR15320

COVER

1шт.

3

167518A1

BOLT

M8 x 16mm

2шт.

4

KHR34680

ROTARY SWITCH

, Serial Range: -C0405

1шт.

4

KHR34681

ROTARY SWITCH

ASSY, Incl 5, Start Serial: D0405

1шт.

5

150409A1

WASHER

, Serial Range: -C0405

4шт.

5

KHR49150

SPACER

, Start Serial: D0405

2шт.

6

KRR21920

BRACKET

, Serial Range: -C0406

1шт.

6

KRR21921

BRACKET

, Start Serial: D0406

1шт.

7

KSR15310

BRACKET

, Serial Range: -C0406

1шт.

7

KSR15311

BRACKET

, Start Serial: D0406

1шт.

8

KHR47290

WORK LAMP

, Start Serial: D0406

1шт.

9

KHR37580

BOLT

M8 x 20mm

4шт.

10

166350A1

BOLT

M8 x 20mm

2шт.

11

166352A1

BOLT

M12 x 30mm

2шт.

12

KHR10220

MOUNTING CLIP

1шт.

13

150496A1

MOUNTING CLIP

1шт.

14

102R010S016R

BOLT

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.
