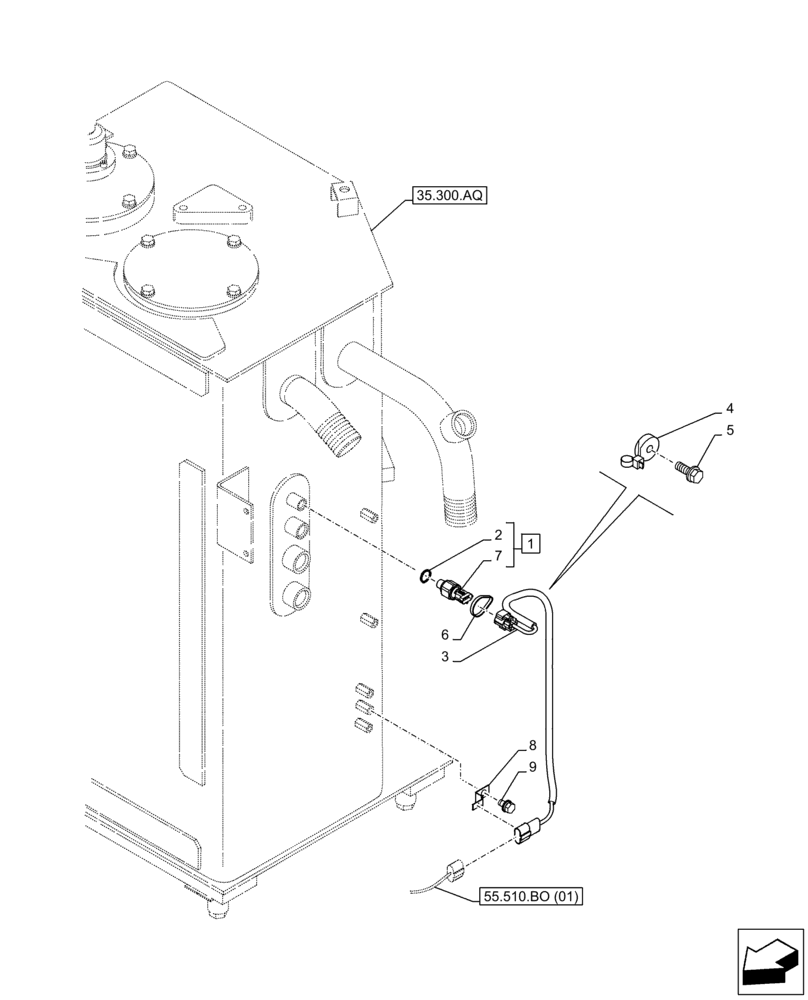

Запчасти Case CX350D LC (55.036.AB[03]) - VAR - 461561, 461563, 461865, 461869 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW, CONTROL (55) - ELECTRICAL SYSTEMS

1

KHR32870

SENSOR

ASSY, Incl 2, 7

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

KHR39920

WIRE HARNESS

, Serial Range: -C0387

1шт.

3

KHR42050

WIRE HARNESS

, Start Serial: D0387

1шт.

4

KHR2584

CLAMP

1шт.

(Q.ty 2) for PN KHR39920; (Q.ty 1) for PN KHR42050

1шт.

5

KHJ1215

BOLT,Spcl

1шт.

(Q.ty 2) for PN KHR39920; (Q.ty 1) for PN KHR42050

1шт.

6

150496A1

MOUNTING CLIP

1шт.

7

NSS

NOT SOLD SEPARAT

Pressure Sensor 1 Mpa, Incl in 1

1шт.

8

158962A1

CLIP

1шт.

9

167518A1

BOLT

1шт.
