(55.036.AB[01]) - CONTROL VALVE, SENSOR

Запчасти Case CX350D LC (55.036.AB[01]) - CONTROL VALVE, SENSOR (55) - ELECTRICAL SYSTEMS

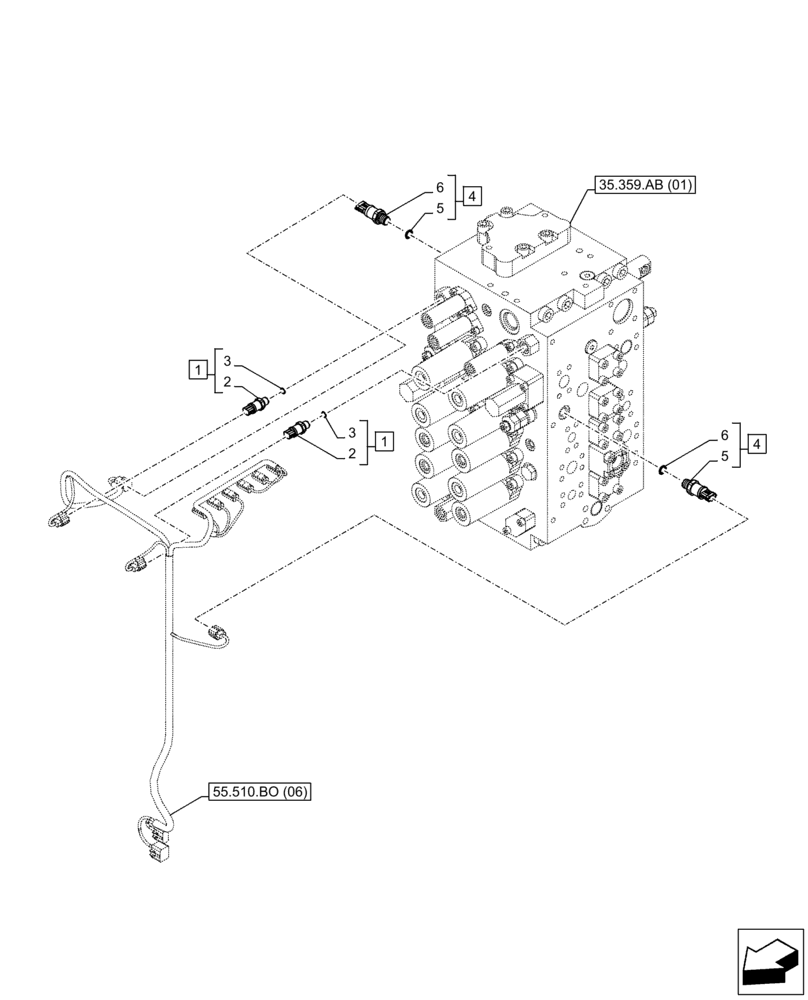

Схема запчастей Case CX350D LC - (55.036.AB[01]) - CONTROL VALVE, SENSOR (55) - ELECTRICAL SYSTEMS
1
5
3
4
6
3
4
5
6
2
55.510.bo (06)
1
35.359.ab (01)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Control Valve Pressure, Incl 2, 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

KHR10290

SENSOR

ASSY, Control Valve Pressure, Incl 5, 6 (Qty 1), Serial Range: -C0402

2шт.

4

KHR41950

SENSOR

ASSY, Control Valve Pressure, Incl 5, 6 (Qty 1), Start Serial: D0402

2шт.

5

NSS

NOT SOLD SEPARAT

Sensor, Incl in 4

2шт.

6

154483A1

O-RING

2шт.
