(50.200.AN) - AIR CONDITIONING, RECEIVER-DRYER

Запчасти Case CX350D LC (50.200.AN) - AIR CONDITIONING, RECEIVER-DRYER (50) - CAB CLIMATE CONTROL

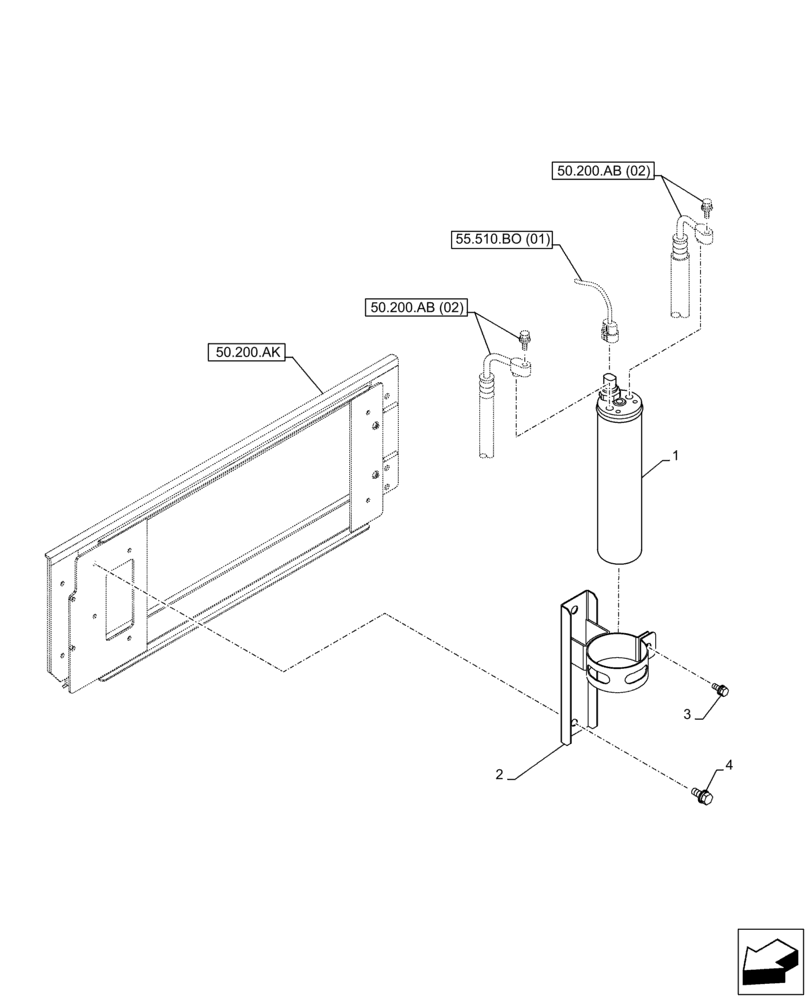

Схема запчастей Case CX350D LC - (50.200.AN) - AIR CONDITIONING, RECEIVER-DRYER (50) - CAB CLIMATE CONTROL
55.510.bo (01)
50.200.ab (02)
1
4
50.200.ab (02)
3
2
50.200.ak
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR13590

RECEIVER-DRYER

1шт.

2

KHR13600

BRACKET

1шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16mm

2шт.

4

167320A1

BOLT,Spcl, M8 x 20mm

M8 x 20mm

2шт.

Выбрано товаров: 4
