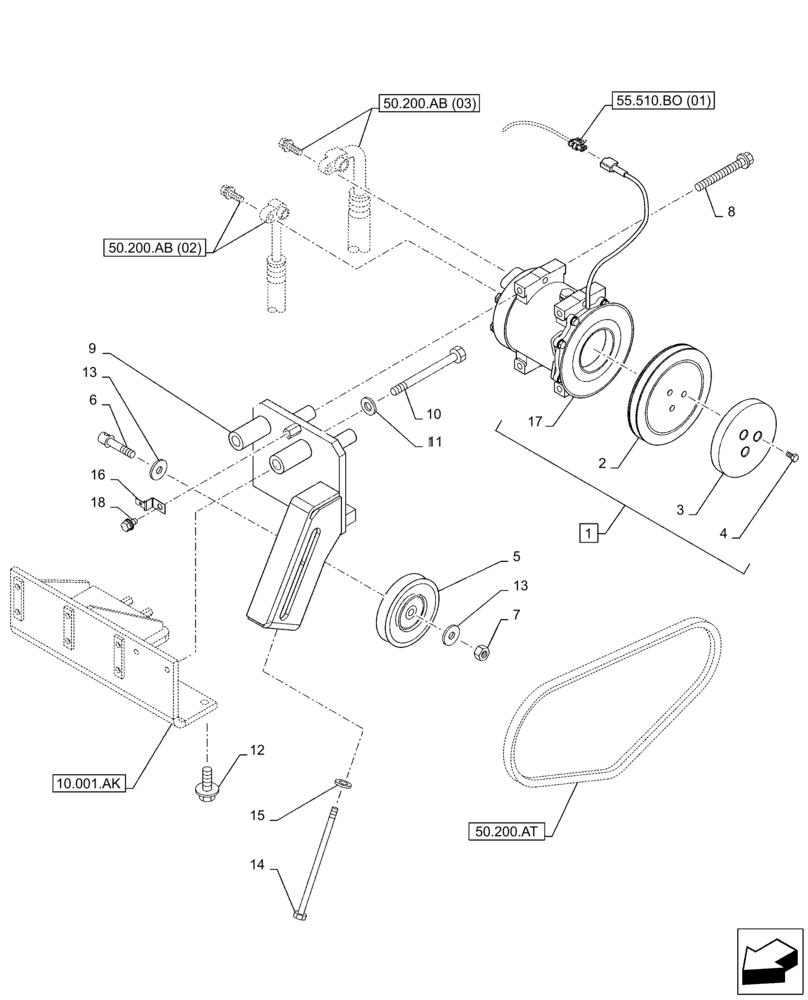

Запчасти Case CX350D LC (50.200.AA) - AIR CONDITIONING, COMPRESSOR (50) - CAB CLIMATE CONTROL

1

KHR3197

COMPRESSOR

ASSY, Incl 2 - 4, 17

1шт.

1

KHR3197R

REMAN-COMPRESSOR

1шт.

1

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

2

KHR3198

CLUTCH

1шт.

3

KHR3974

PROTECTIVE COVER

1шт.

4

KHR3975

BOLT

3шт.

5

KHR11760

PULLEY

1шт.

6

157299A1

SHAFT

1шт.

7

157292A1

NUT

1шт.

8

KAR0921

BOLT,Spcl

M8 x 90mm

4шт.

9

KSR12531

SUPPORT

1шт.

10

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

M12 x 90mm

2шт.

11

150811A1

WASHER

2шт.

12

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

13

151977A1

WASHER

2шт.

14

KHR3171

BOLT,Spcl

M8 x 160mm

1шт.

15

183-108VR

SPRING WASHER

1шт.

16

158962A1

CLIP

1шт.

17

NSS

NOT SOLD SEPARAT

Compressor, Incl in 1

1шт.

18

167518A1

BOLT

M8 x 16mm

1шт.
