(50.104.AO[01]) - AIR CONDITIONING, W/ HEATER, AIR DUCTS

Запчасти Case CX350D LC (50.104.AO[01]) - AIR CONDITIONING, W/ HEATER, AIR DUCTS (50) - CAB CLIMATE CONTROL

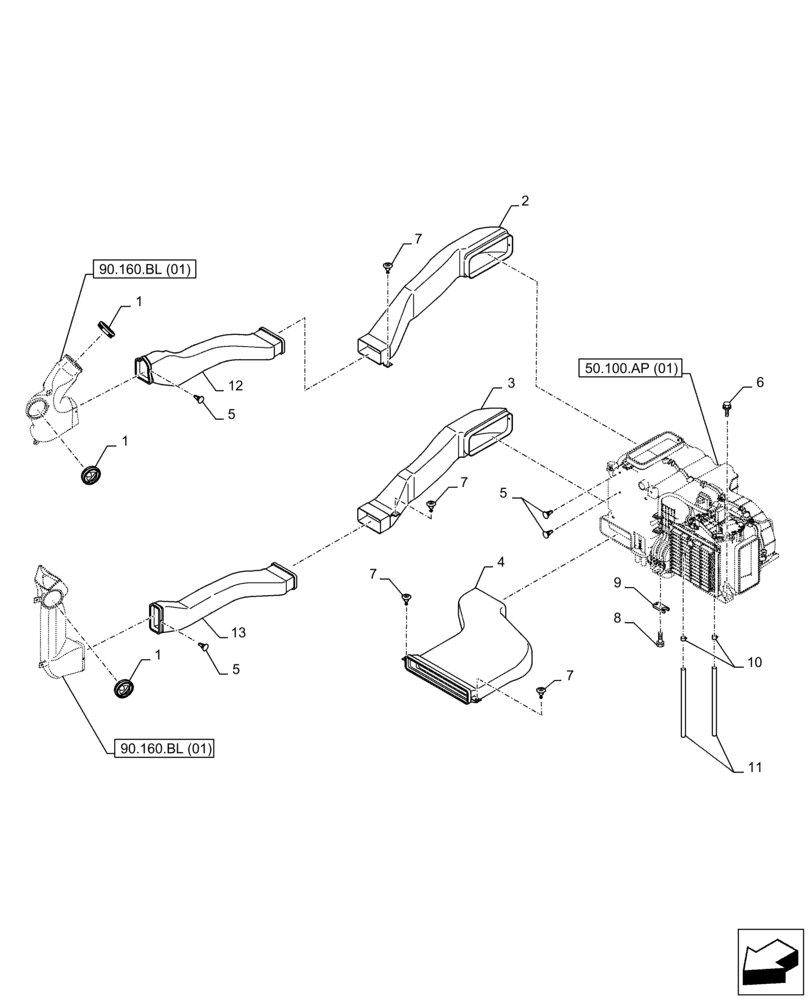

Схема запчастей Case CX350D LC - (50.104.AO[01]) - AIR CONDITIONING, W/ HEATER, AIR DUCTS (50) - CAB CLIMATE CONTROL
6
4
1
90.160.bl (01)
9
13
90.160.bl (01)
5
2
8
10
50.100.ap (01)
1
7
5
7
7
7
12
11
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR21450

DIFFUSER

, Serial Range: -C0389

3шт.

1

KHR21451

LOUVER

, Start Serial: D0389

3шт.

2

KHR27070

DUCT

1шт.

3

KHR27080

DUCT

1шт.

4

KHR27110

DUCT

1шт.

5

KHR27960

PIN

4шт.

6

KHJ2298

BOLT,Spcl

6шт.

7

KHR13950

CLIP

4шт.

8

KHR2464

BOLT

1шт.

9

KHR10420

PLATE

1шт.

10

159622A1

MOUNTING CLIP

2шт.

11

KHR3574

HOSE

2шт.

12

KHR27050

DUCT

1шт.

13

KHR27060

DUCT

1шт.

Выбрано товаров: 14
