Запчасти Case CX350D LC (48.100.AD[02]) - VAR - 956000 - TRACK CHAIN, COMPONENTS (L=700MM) (48) - TRACKS & TRACK SUSPENSION

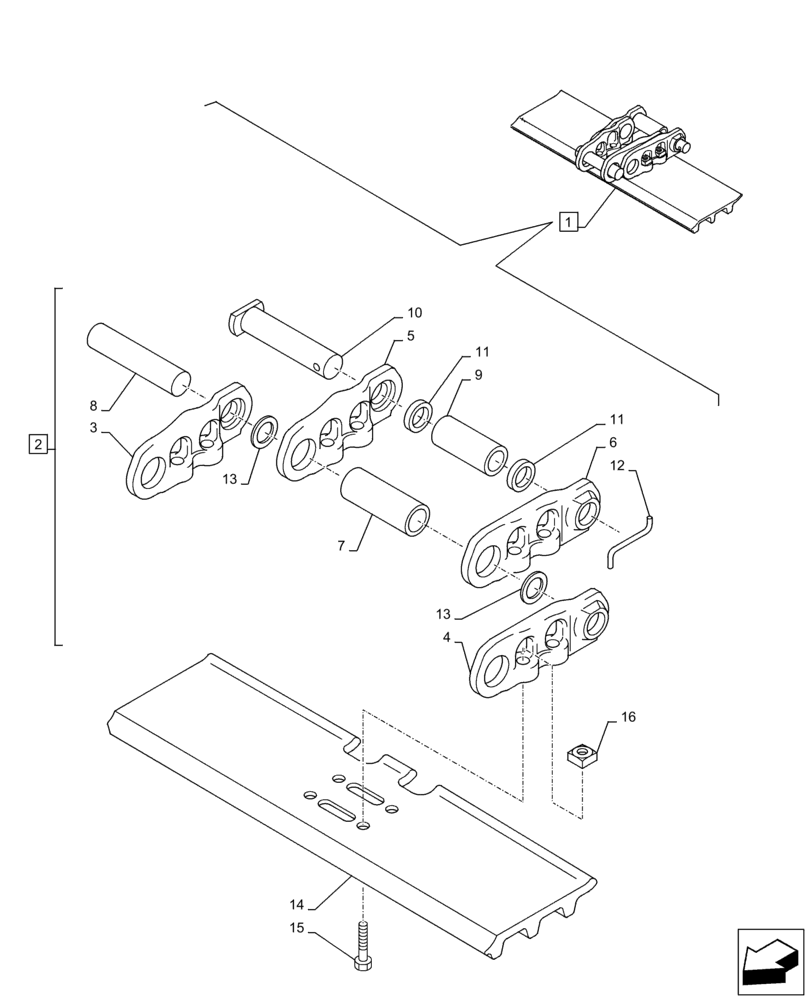

![Схема запчастей Case CX350D LC - (48.100.AD[02]) - VAR - 956000 - TRACK CHAIN, COMPONENTS (L=700MM) (48) - TRACKS & TRACK SUSPENSION](https://partsell.ru/storage/images/casece/5304046.png)
7
16
6
14
12
4
10
11
13
11
8
1
5
3
2
9
15
13
1
KSA10470
CHAIN GUIDE
ASSY, Incl 2 - 16
2шт.
2
KSA10460
CHAIN (CE)
ASSY, Incl 3 - 12
2шт.
3
KSA1109
CHAIN LINK
94шт.
4
KSA1110
CHAIN LINK
94шт.
5
KSA1111
CHAIN LINK
2шт.
6
KSA1112
CHAIN LINK
2шт.
7
KSA10430
BUSHING
94шт.
8
KSA1114
PIN
94шт.
9
KSA1115
BUSHING
2шт.
10
KSA1116
HEADED PIN
2шт.
11
KSA1117
RING
4шт.
12
KSA1118
SPLIT PIN/SAFETY PIN
2шт.
13
KSA10440
SEAL
188шт.
14
KBA1161
TRACK SHOE
700mm
96шт.
15
KSA1107
BOLT
384шт.
16
KSA1108
NUT
384шт.
