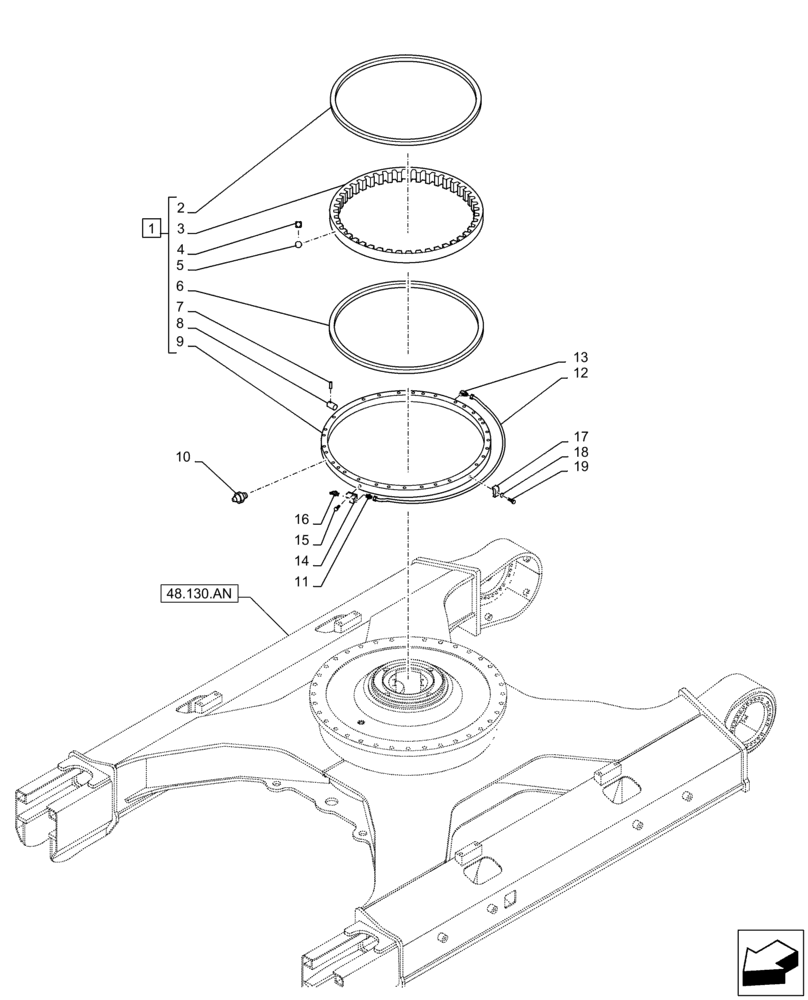

Запчасти Case CX350D LC (39.103.AD) - SLEWING RING (39) - FRAMES AND BALLASTING

1

KSB16680

RING GEAR

ASSY, Incl 2 - 9

1шт.

2

KTB0854

SEALING RING

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

93шт.

5

NSS

NOT SOLD SEPARAT

Ball Bearing, Incl in 1

93шт.

6

KTB0855

SEALING RING

1шт.

7

162549A1

LINCH PIN

1шт.

8

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

1шт.

10

153630A1

LUBE NIPPLE

1шт.

11

152599A1

MULTIPOLE CONNECTOR

1шт.

12

KSB16740

PIPE

1шт.

13

152627A1

ELBOW

1шт.

14

KRB10730

MANIFOLD VALVE

1шт.

15

166345A1

BOLT

1шт.

16

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

17

151504A1

CLAMP

1шт.

18

153081A1

WASHER

1шт.

19

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.
