(35.738.AE[05]) - VAR - 461545, 461546, 481243, 481245, 481265, 781184 - BUCKET CYLINDER, LINES

Запчасти Case CX350D LC (35.738.AE[05]) - VAR - 461545, 461546, 481243, 481245, 481265, 781184 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

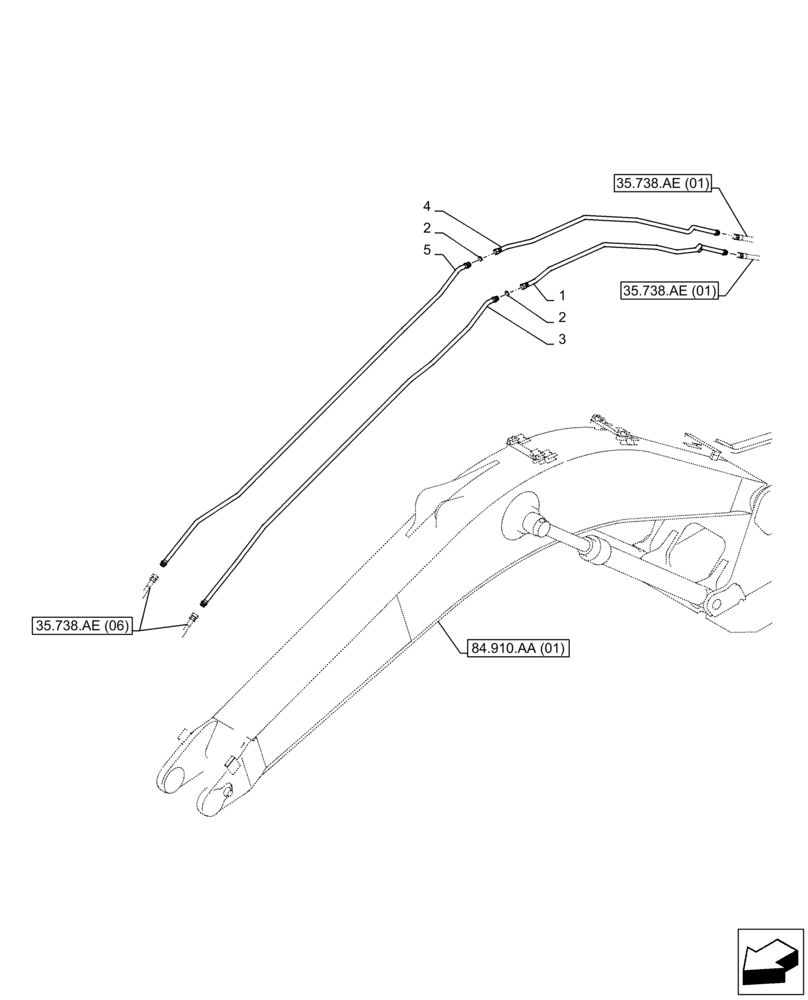

Схема запчастей Case CX350D LC - (35.738.AE[05]) - VAR - 461545, 461546, 481243, 481245, 481265, 781184 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
4
1
35.738.ae (06)
3
2
35.738.ae (01)
35.738.ae (01)
5
84.910.aa (01)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV24481

PIPE

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

KSV24491

PIPE

1шт.

4

KSV24501

PIPE

1шт.

5

KSV24511

PIPE

1шт.

Выбрано товаров: 5
