(35.738.AE[03]) - VAR - 461546, 481243 - BUCKET CYLINDER, LINES (ARM L=2.65M)

Запчасти Case CX350D LC (35.738.AE[03]) - VAR - 461546, 481243 - BUCKET CYLINDER, LINES (ARM L=2.65M) (35) - HYDRAULIC SYSTEMS

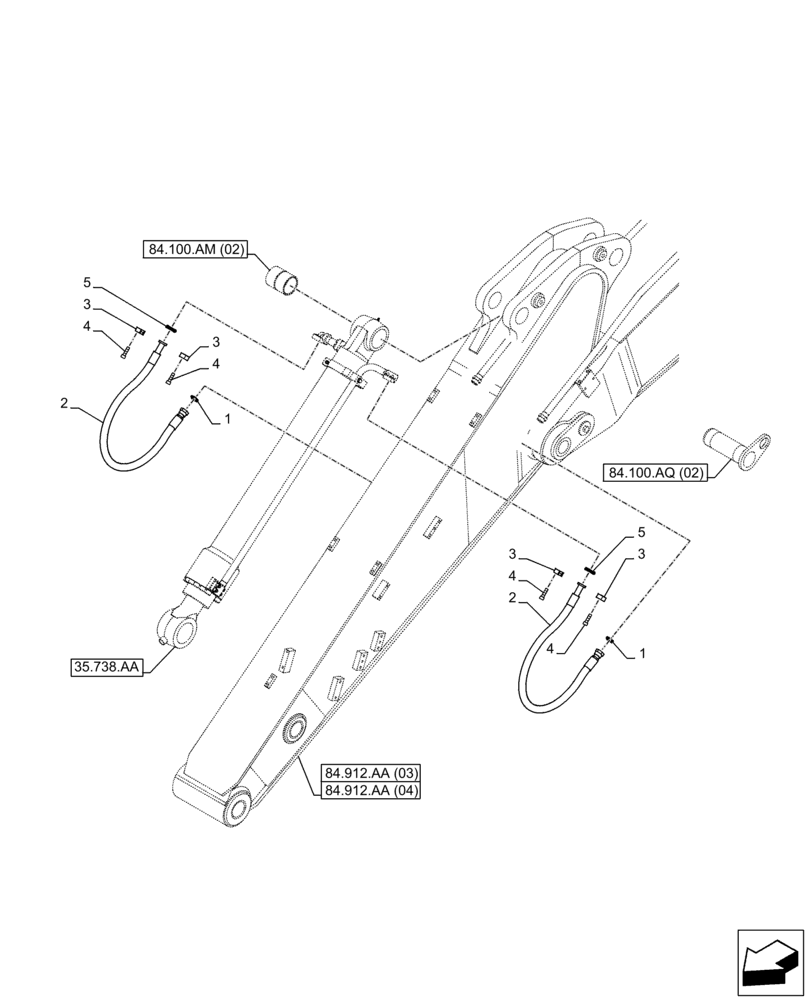

Схема запчастей Case CX350D LC - (35.738.AE[03]) - VAR - 461546, 481243 - BUCKET CYLINDER, LINES (ARM L=2.65M) (35) - HYDRAULIC SYSTEMS
84.912.aa (03)
3
5
1
4
3
2
2
3
5
84.100.aq (02)
35.738.aa
4
84.100.am (02)
4
84.912.aa (04)
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

2

KSV29830

HYDRAULIC HOSE

2шт.

3

153459A1

FLANGE

4шт.

4

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

5

155211A1

O-RING

2шт.

Выбрано товаров: 5
