(35.738.AE[01]) - BUCKET CYLINDER, LINES

Запчасти Case CX350D LC (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

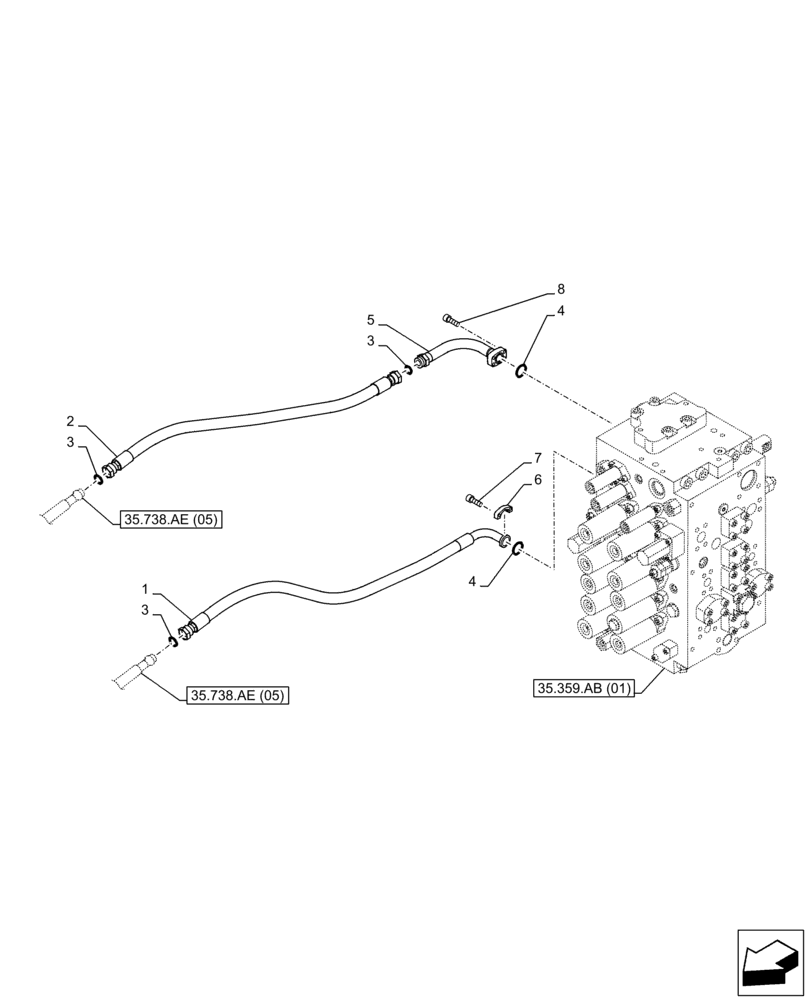

Схема запчастей Case CX350D LC - (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
3
35.359.ab (01)
4
2
5
3
35.738.ae (05)
35.738.ae (05)
4
8
7
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ22260

HYDRAULIC HOSE

25mm ID x 1550mm

1шт.

2

KSJ18770

HYDRAULIC HOSE

25mm ID x 1450mm

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

4

155211A1

O-RING

2шт.

5

KSJ18750

PIPE

1шт.

6

153459A1

FLANGE

2шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

Выбрано товаров: 8
