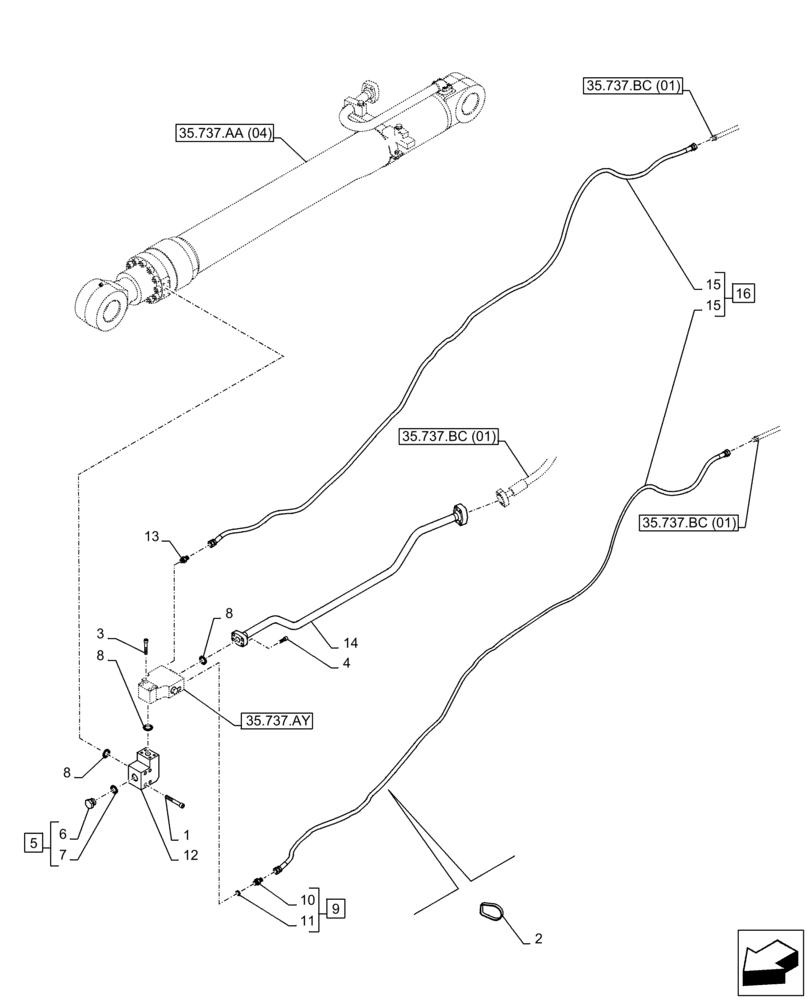

Запчасти Case CX350D LC (35.737.BC[02]) - VAR - 481064 - ARM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

108R014Y100R

BOLT

4шт.

2

150071A1

MOUNTING CLIP

9шт.

3

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

4

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

5

162659A1

PLUG

ASSY, Incl 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

1шт.

7

154523A1

O-RING

1шт.

8

155211A1

O-RING

3шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 10 - 11

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

154475A1

O-RING

1шт.

12

KSV18920

MANIFOLD VALVE

1шт.

13

KNJ19750

ADAPTER

1шт.

14

KSV25830

PIPE

1шт.

15

KHJ25460

HYDRAULIC HOSE

2шт.

16

KSV19000

HOSE ASSY.

ASSY, Incl 15

1шт.
