(35.737.BC[01]) - VAR - 481064 - ARM CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX350D LC (35.737.BC[01]) - VAR - 481064 - ARM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

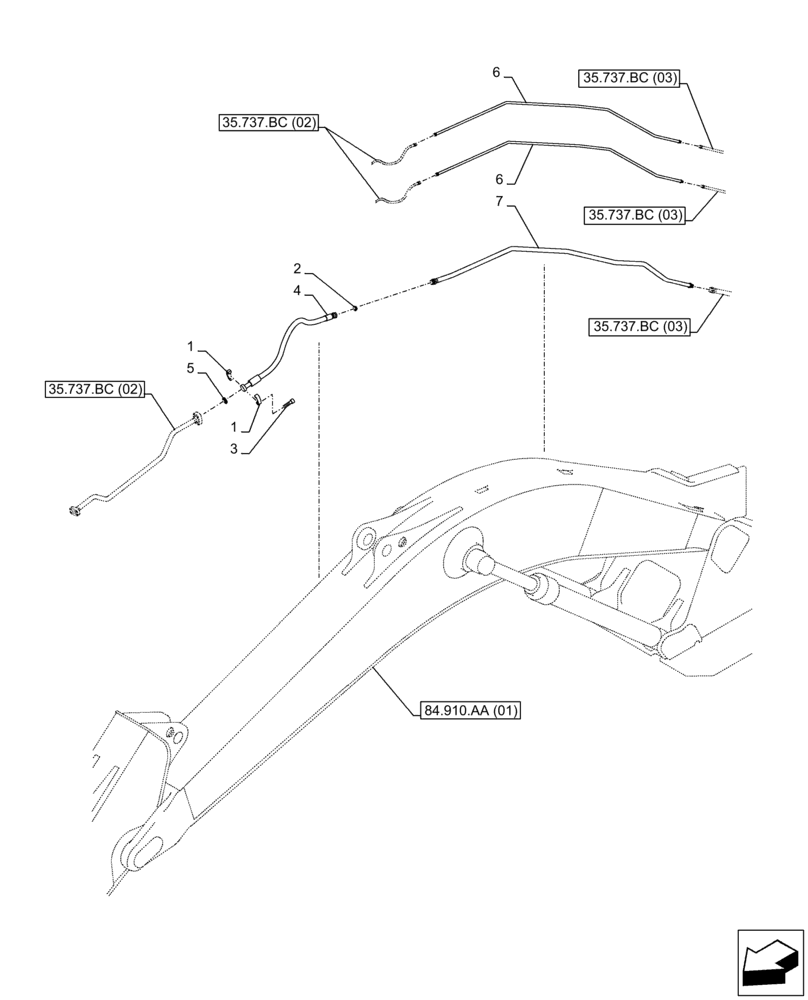

Схема запчастей Case CX350D LC - (35.737.BC[01]) - VAR - 481064 - ARM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
6
35.737.bc (02)
35.737.bc (03)
5
1
84.910.aa (01)
7
6
4
2
3
35.737.bc (02)
35.737.bc (03)
1
35.737.bc (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150124A1

FLANGE

2шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

3

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.

4

KSV21280

HOSE ASSY.

1шт.

5

164450A1

O-RING

1шт.

6

KSV24930

PIPE

2шт.

7

KSV24461

PIPE

1шт.

Выбрано товаров: 7
