(35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX350D LC (35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

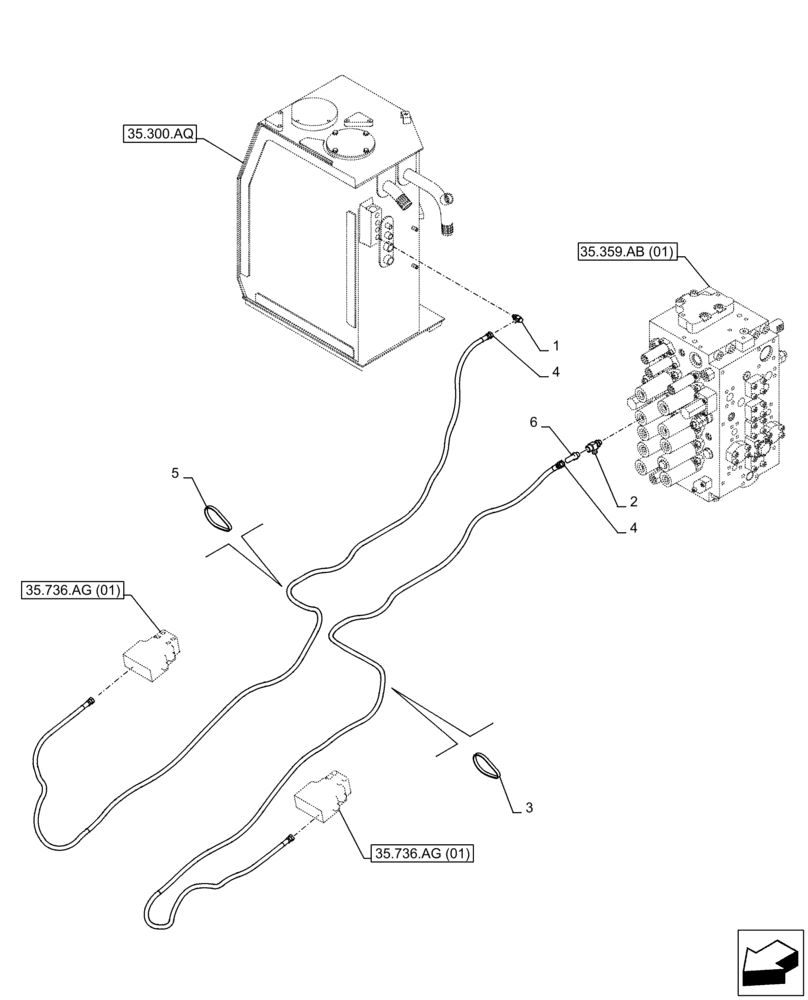

Схема запчастей Case CX350D LC - (35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
1
3
4
35.736.ag (01)
35.300.aq
4
5
35.359.ab (01)
6
2
35.736.ag (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ11560

TEE

1шт.

2

KHJ31880

TEE

1шт.

3

150071A1

MOUNTING CLIP

12шт.

4

KHJ18570

HYDRAULIC HOSE

2шт.

5

150496A1

MOUNTING CLIP

12шт.

6

KHJ28590

ELBOW

1шт.

Выбрано товаров: 6
