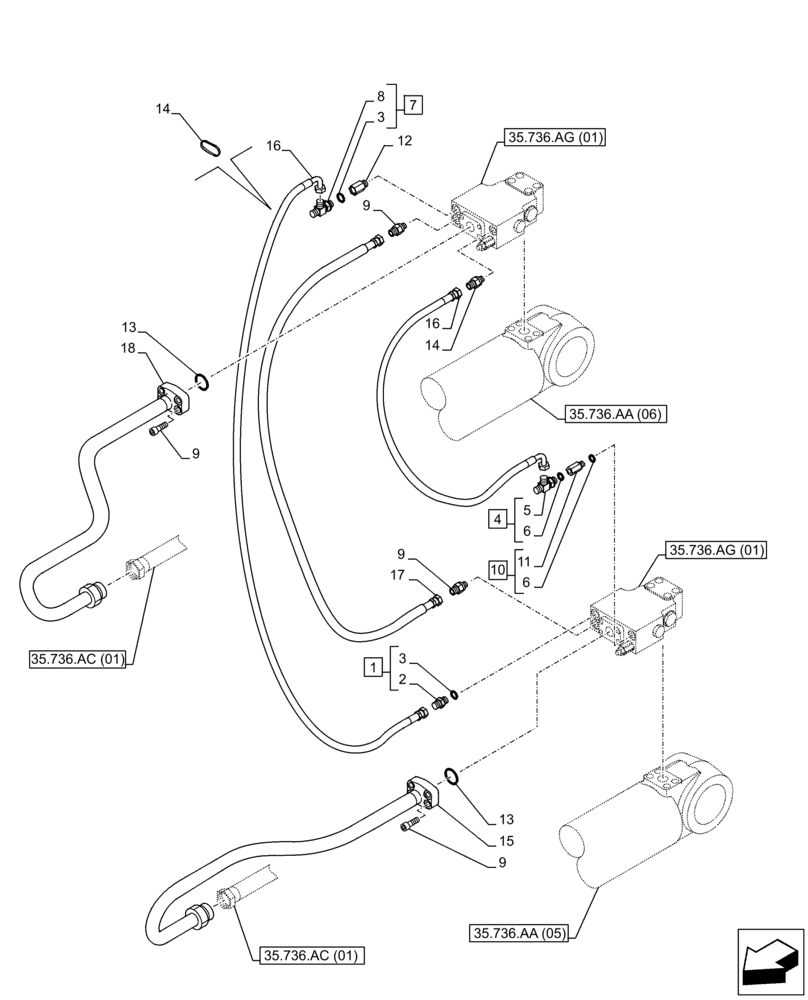

Запчасти Case CX350D LC (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

154475A1

O-RING

4шт.

4

162827A1

TEE

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 4

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 8, 3 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 7

1шт.

9

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

8шт.

10

162525A1

STUD

ASSY, Incl 11, 6 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

12

KHV0373

STUD

1шт.

13

155211A1

O-RING

4шт.

14

150071A1

MOUNTING CLIP

5шт.

15

KSV28641

PIPE

1шт.

16

KHJ29320

HYDRAULIC HOSE

2шт.

17

KHV12850

HYDRAULIC HOSE

1шт.

18

KSV28651

PIPE

1шт.
