(35.736.AG[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE

Запчасти Case CX350D LC (35.736.AG[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

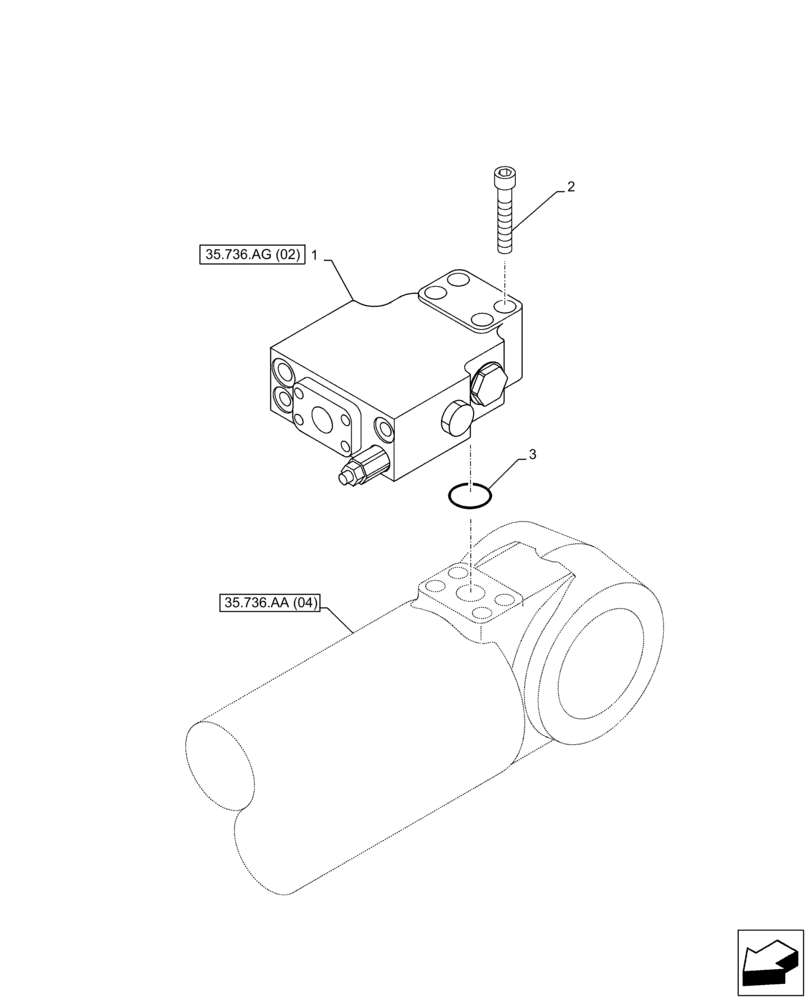

Схема запчастей Case CX350D LC - (35.736.AG[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
3
1
2
35.736.ag (02)
35.736.aa (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV17260

SAFETY VALVE

ASSY

2шт.

2

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

M12 x 70mm

8шт.

3

155211A1

O-RING

2шт.
