(35.736.AC[02]) - LIFT CYLINDER, BOOM, LINE

Запчасти Case CX350D LC (35.736.AC[02]) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

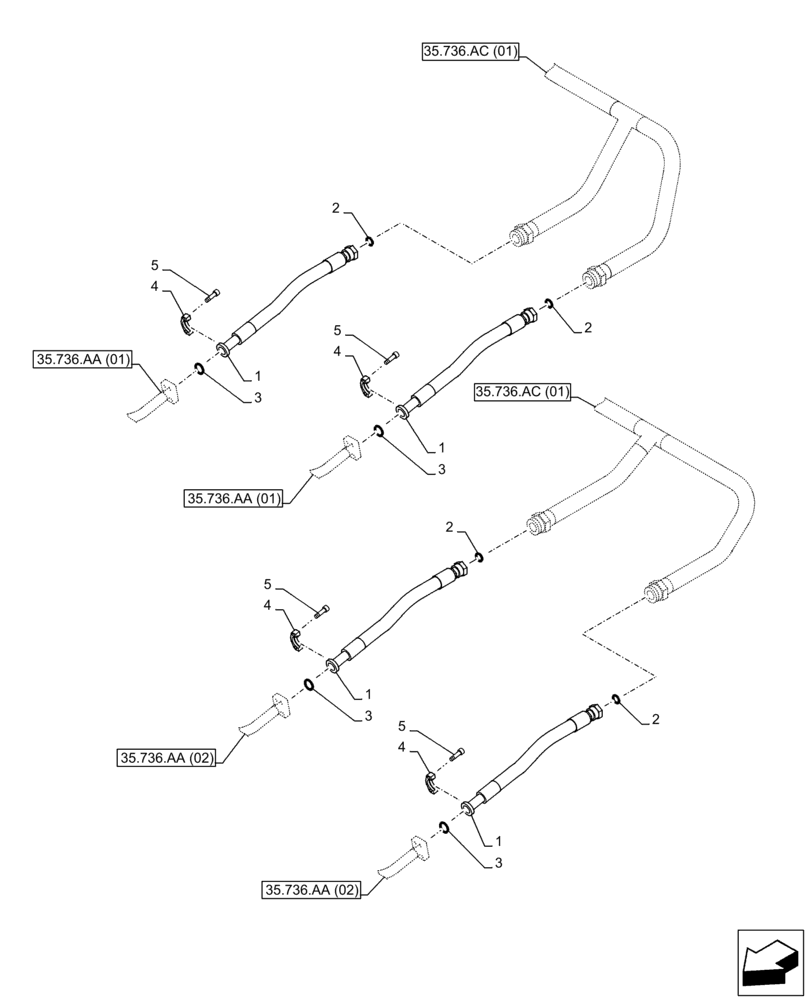

Схема запчастей Case CX350D LC - (35.736.AC[02]) - LIFT CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS
2
1
35.736.aa (02)
2
5
35.736.ac (01)
3
5
1
35.736.aa (02)
35.736.aa (01)
1
4
2
3
5
2
3
35.736.ac (01)
4
4
35.736.aa (01)
5
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ16710

HYDRAULIC HOSE

25mm ID x 1070mm

4шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

3

155211A1

O-RING

4шт.

4

153459A1

FLANGE

8шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

16шт.

Выбрано товаров: 5
