(35.734.AD[05]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE (ARM L=4.0M) - BSN NFS7P1111

Запчасти Case CX350D LC (35.734.AD[05]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE (ARM L=4.0M) - BSN NFS7P1111 (35) - HYDRAULIC SYSTEMS

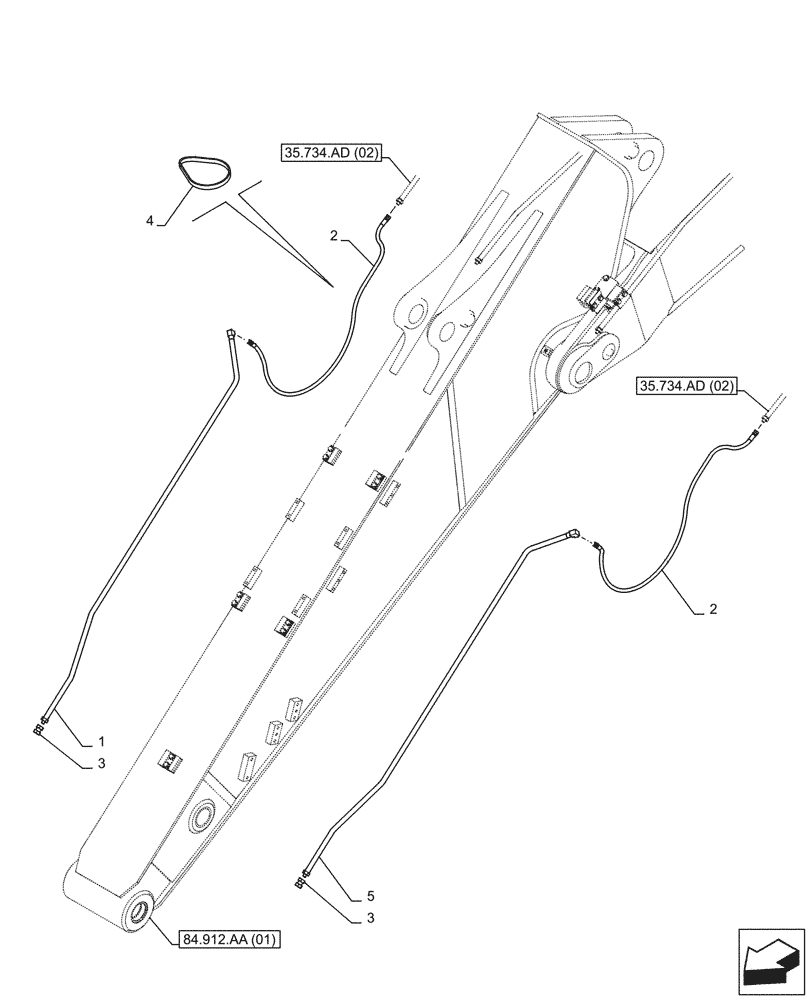

Схема запчастей Case CX350D LC - (35.734.AD[05]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE (ARM L=4.0M) - BSN NFS7P1111 (35) - HYDRAULIC SYSTEMS
35.734.ad (02)
2
1
3
5
4
3
2
84.912.aa (01)
35.734.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV31160

TUBE

1шт.

2

KHV13460

HOSE

2шт.

3

158842A1

PLUG

2шт.

4

150496A1

MOUNTING CLIP

6шт.

5

KSV31150

TUBE

1шт.

Выбрано товаров: 5
