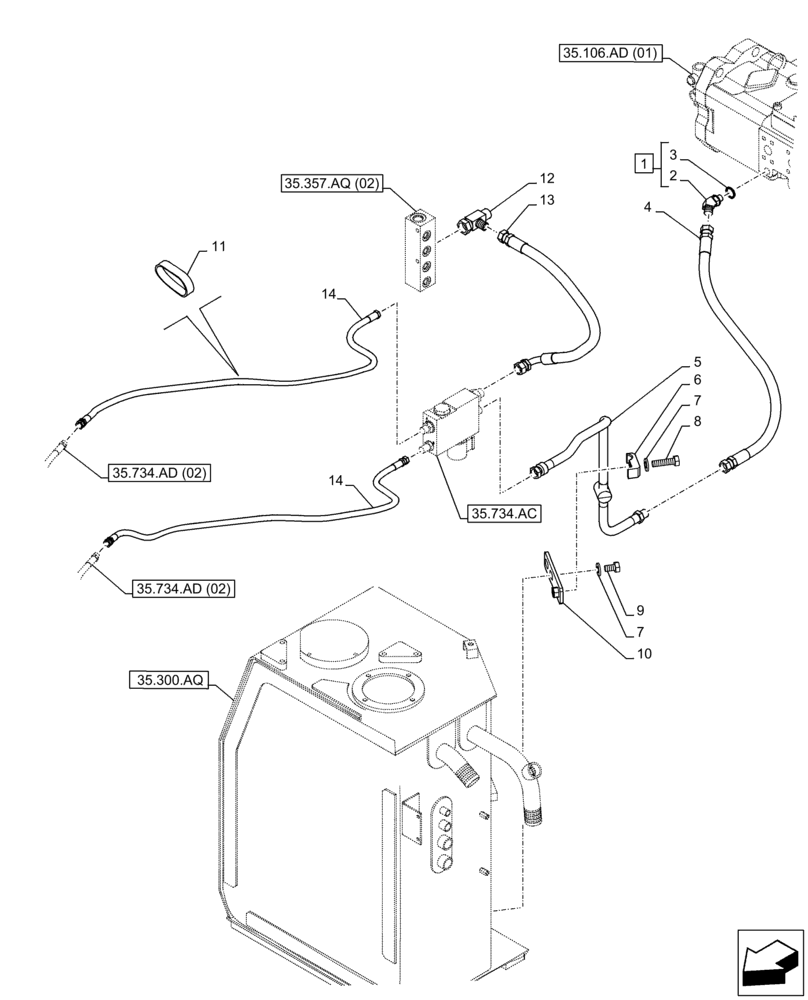

Запчасти Case CX350D LC (35.734.AD[01]) - VAR - 781128 - QUICK COUPLER, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

161087A1

ELBOW

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 1

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KSJ22640

HYDRAULIC HOSE

09mm ID x 630mm

1шт.

5

KSJ22600

PIPE

1шт.

6

169149A1

COLLAR

1шт.

7

150811A1

WASHER

3шт.

8

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

9

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

10

KSJ22620

PLATE

1шт.

11

150496A1

MOUNTING CLIP

250mm

7шт.

12

KHJ15300

TEE

1шт.

13

KHJ32030

HYDRAULIC HOSE

630mm

1шт.

14

KHV13450

HYDRAULIC HOSE

6mm ID x 1600mm, Serial Range: -C0373

2шт.

14

KHV13480

HOSE

, Start Serial: D0373

2шт.
